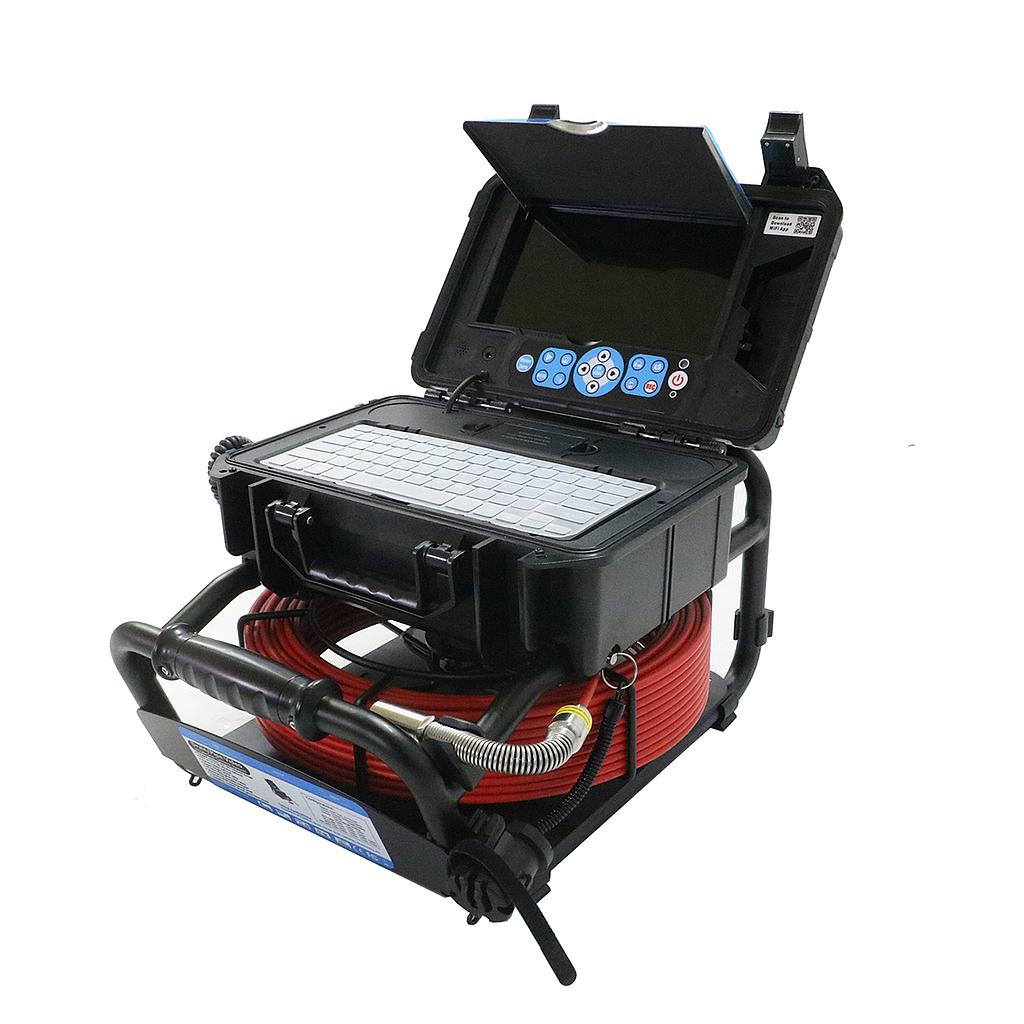

ETV Cameras 3699FB-10-23 Versatile pipe inspection camera (Ø23mm; cable 20m)

Camera Head

Camera Size: Φ23mm

Camera Total Length: 155mm

Sensor: 1/3" CMOS

Resolution: AHD 1920*1080

View Angle: 130°

Focus Distance: 15cm (approx)

Depth-of-Field: 20cm(approx)

Front Lens: Sapphire glass

Water-Proof: 20m Under Water(Camera fix on Cable)

Shell Material: #304 stainless steel

Lighting: Built-in 15×LED(White)

Operating Temperature: -10~50℃/+14~+122℉

Storage Temperature: -20~60℃/+4~+140℉

Skids: Dia.46mm Dia.80mm

Cable Wheel

20M fiberglass rod cable

Dia. of push cable: 6.8mm

Material of cable: Fiberglass covered by PP

LCD Monitor

10-inch or 13.1 inch 16:9 super bright HD color LCD screen

Resolution: 1024 × 600 pixels

Mirror and Flip: supports image mirroring and flipping

Video Resolution: AHD 1080P

Audio Recording: local sound recording with built-in speaker

Output: TV and audio output

On-screen date and time display

On-screen meter/ft distance display (optional)

Supports SD card and U-disk for convenient recording

All functions accessible via keyboard, offering notebook-like convenience

Play audio and adjust volume while recording or reviewing videos

Auxiliary Wi-Fi photo capture function for easy snapshots and instant sharing.

20x zoom for clear inspection, both close-up and wide view

Multi-language support: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese

Battery Supply

Removable Battery Pack

Type: Li-ion 18650

Voltage: 7.4V

Energy: 66.6Wh

Capacity: 9000mAh

Charging time: approx. 10 hours

Working time: up to 6-7 hours with LEDs at maximum brightness (single charge)

What's Included:

1 x 23mm Camera head

1 x 20m cable wheel

2 x Plastic guides(dia.80mm and dia.46mm)

1 x remote control

1 x screw driver

1 x power adapter

1 x car charger

1 x connection cable

1 x Screws and camera head waterproof seal

1 x waterproof control box with monitor mounted

This upgraded, versatile pipe inspection camera is designed for sewer pipes, air ducts, underground cables, and more. It features a Φ23 mm CMOS camera head, a 20–50 m fiberglass push rod, and a 10.1" or 13.3" LCD monitor with SD card and U-disk recording.

The system is suitable for inspecting DN30–200 mm pipes and can easily navigate 90° bends in Φ50 mm pipes. Key features include a removable battery, a multifunction keyboard, Wi-Fi function, video recording with mute/unmute option, 1080P Full HD image clarity, 20× digital zoom, a built-in speaker, and an optional backpack straps for enhanced portability.

The control unit can optionally be equipped with a telescopic pull handle and wheels, making transportation easy and convenient
