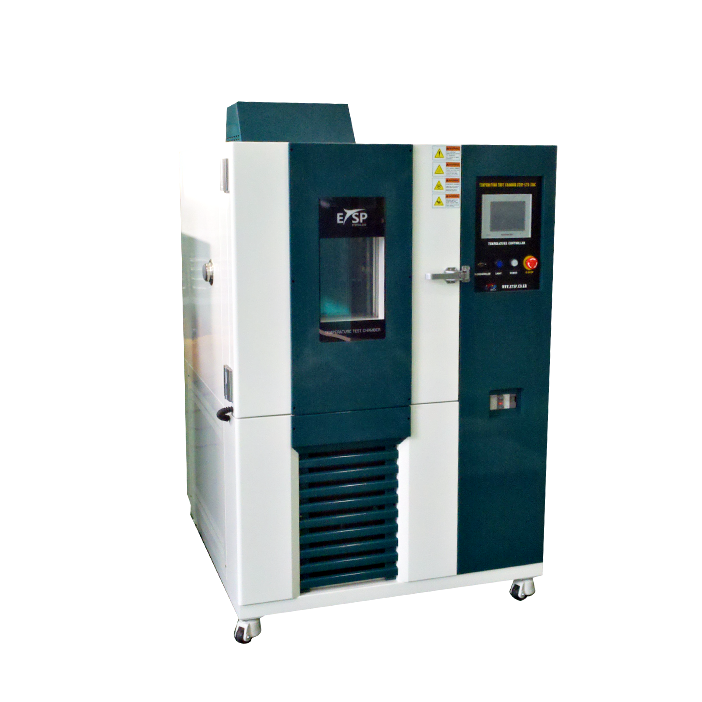

ETSP ETSP-TH 60 Temperature Testing Chambers (60L)

Temperature range:

-40 ℃ ~ +180 ℃ (single stage refrigeration system)

-70 ℃ ~ +180 ℃ (cascade refrigeration system)

Temperature accuracy: < ± 0.1 ℃

Temperature stability: < ± 0.5 ℃ at ateady state conditions

Temperature uniformity: < ±1% of setpoint(Less than ± 0.1 ℃ at 100 ℃)

Heat-up rate: 0.5 ~ 5 ℃/min

Cooling rate: 0.5 ~ 5 ℃/min

Humidity range: 20% ~ 98% RH(10% ~ 98% RH is an optional spec)

Humidity stability: < ±1.5% RH at steady state conditions without heat dissipation in time

Humidity uniformity: < n ±3.0% RH

Condending: Air cooled or water cooled type

Input power requirements: 220V/380V, 50Hz/60Hz, 1Ph/3Ph

Internal dimensions: 300x400x500 (WxDxH) mm

External dimensions: 900x900x1500 (WxDxH) mm

Useful capatity: 60L
