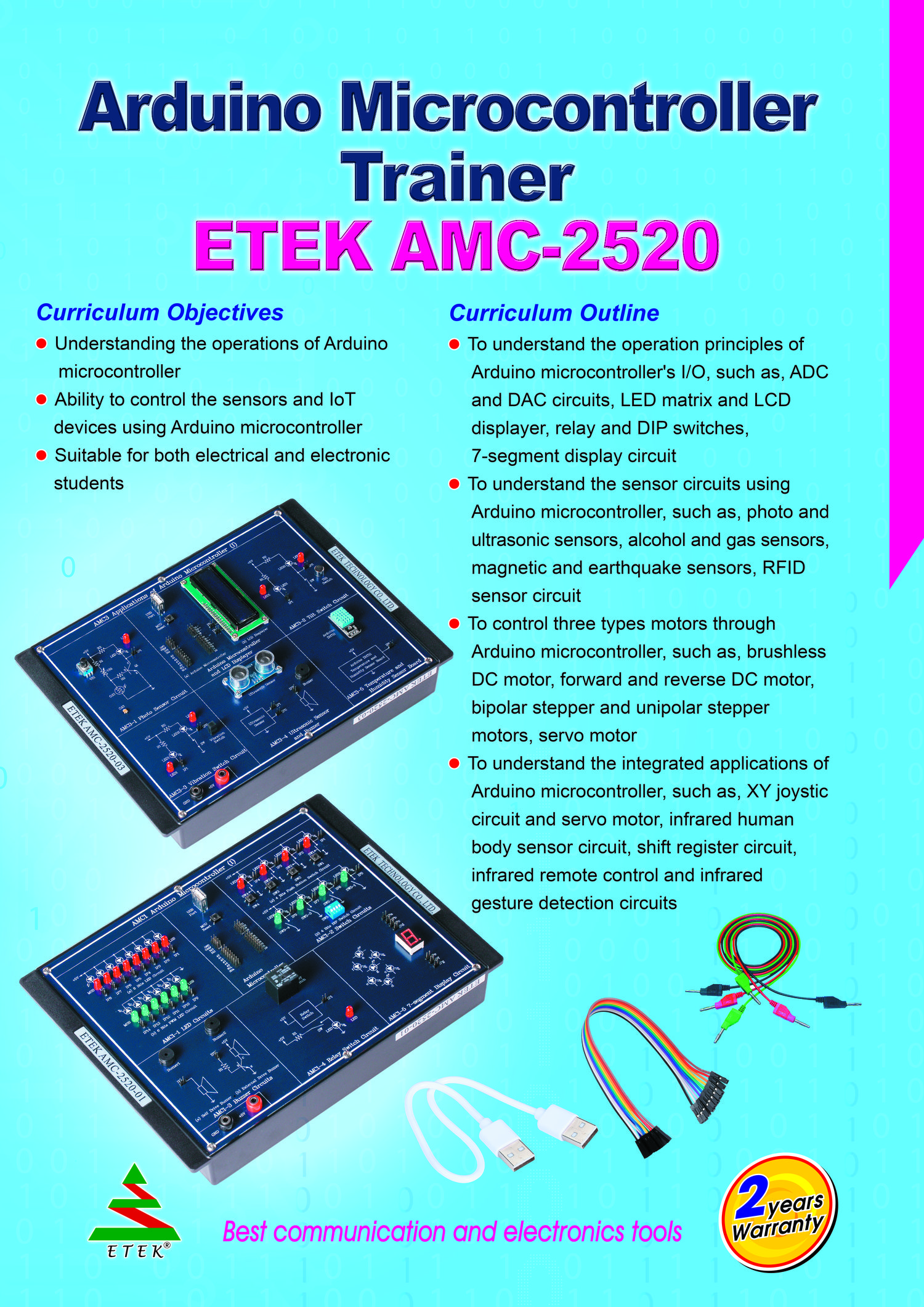

ETEK AMC-2520 Arduino Microcontroller Trainer (7 modules)

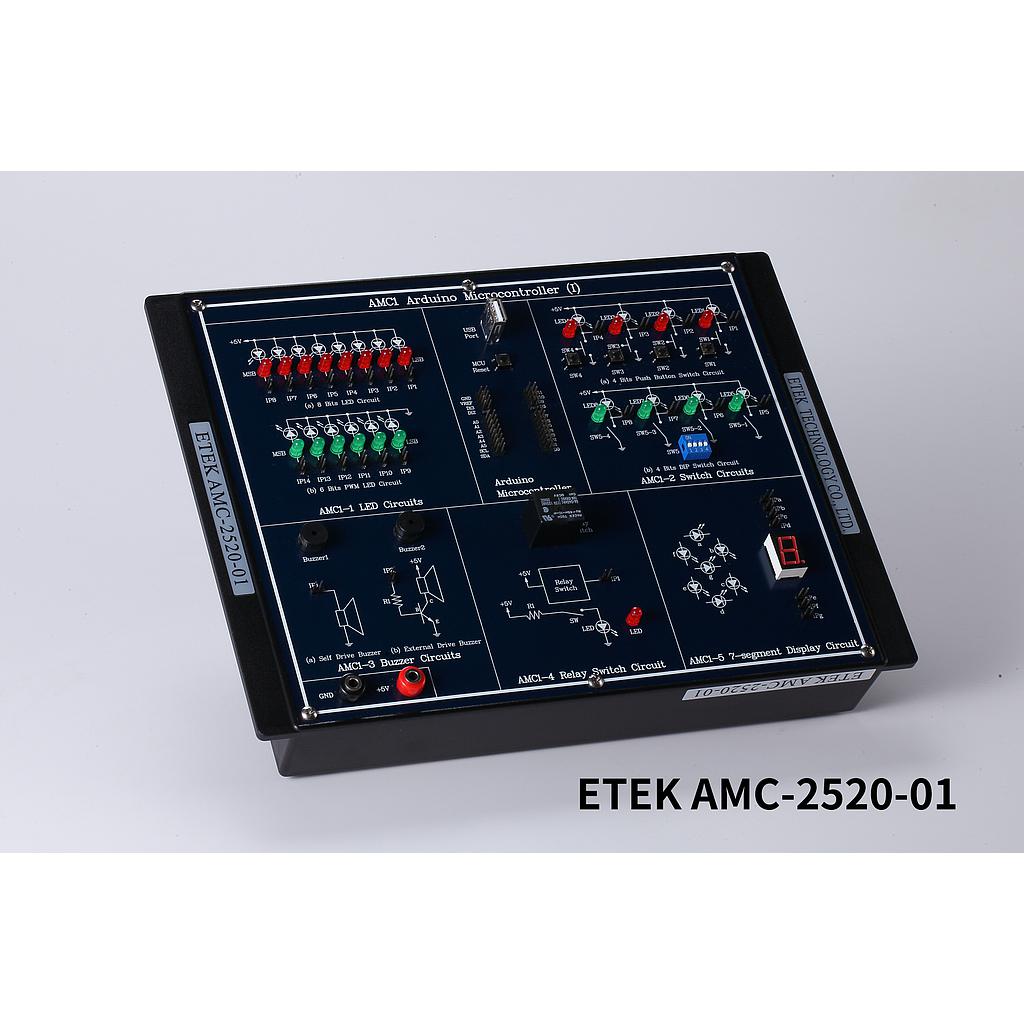

Module One: ETEK AMC-2520-01

Chapter 1: Arduino Microcontroller (I)

Experiment 1: 8 Bits LED Circuit

Experiment 2: 6 Bits PWM LED Circuit

Experiment 3: 4 Bits Push Button Switch Circuit

Experiment 4: 4 Bits DIP Switch Circuit

Experiment 5-1: Self Drive Buzzer

Experiment 5-2: External Drive Buzzer

Experiment 6: Relay Switch Circuit

Experiment 7: 7-segment Display Circuit

Module Two: ETEK AMC-2520-02

Chapter 2: Arduino Microcontroller (II)

Experiment 1-1: 16x8 LED Matrix Circuit

Experiment 1-2: 16x2 LCD Displayer

Experiment 2: 4x4 Matrix Keypad

Experiment 3-1: ADC Circuit

Experiment 3-2: DAC Circuit

Experiment 4: DS1307 Clock Module

Experiment 5: Full Color RGB LEDs

Module Three: ETEK AMC-2520-03

Chapter 3: Applications of Arduino Microcontroller (I)

Experiment 1: Photo Sensor Circuit

Experiment 2: Tilt Switch Circuit

Experiment 3: Vibration Switch Circuit

Experiment 4: Ultrasonic Sensor and Buzzer

Experiment 5: Temperature and Humidity Sensor Board

Module Four: ETEK AMC-2520-04

Chapter 4: Applications of Arduino Microcontroller (II)

Experiment 1: Alcohol Sensor Circuit

Experiment 2: Gas Sensor Circuit

Experiment 3: Magnetic Sensor Circuit

Experiment 4: Sound Sensor Circuit

Experiment 5: Earthquake Sensor Circuit

Experiment 6: RFID Sensor Circuit

Module Five: ETEK AMC-2520-05

Chapter 5: Applications of Arduino Microcontroller (III)

Experiment 1: Brushless DC Motor

Experiment 2: Forward and Reverse DC Motor

Experiment 3: Bipolar Stepper Motor

Experiment 4: Unipolar Stepper Motor

Experiment 5: Servo Motor

Module Six: ETEK AMC-2520-06

Chapter 6: Integrated Applications of Arduino Microcontroller (I)

Experiment 1: 74HC595 Shift Register Circuit

Experiment 2: Infrared Human Body Sensor Circuit

Experiment 3: XJ Joystic Circuit and Servo Motor

Module Seven: ETEK AMC-2520-07

Chapter 7: Integrated Applications of Arduino Microcontroller (II)

Experiment 1: Infrared Gesture Detection Circuit

Experiment 2: Infrared Remote Control Circuit

Experiment 3: Countdown Time Circuit

Features
