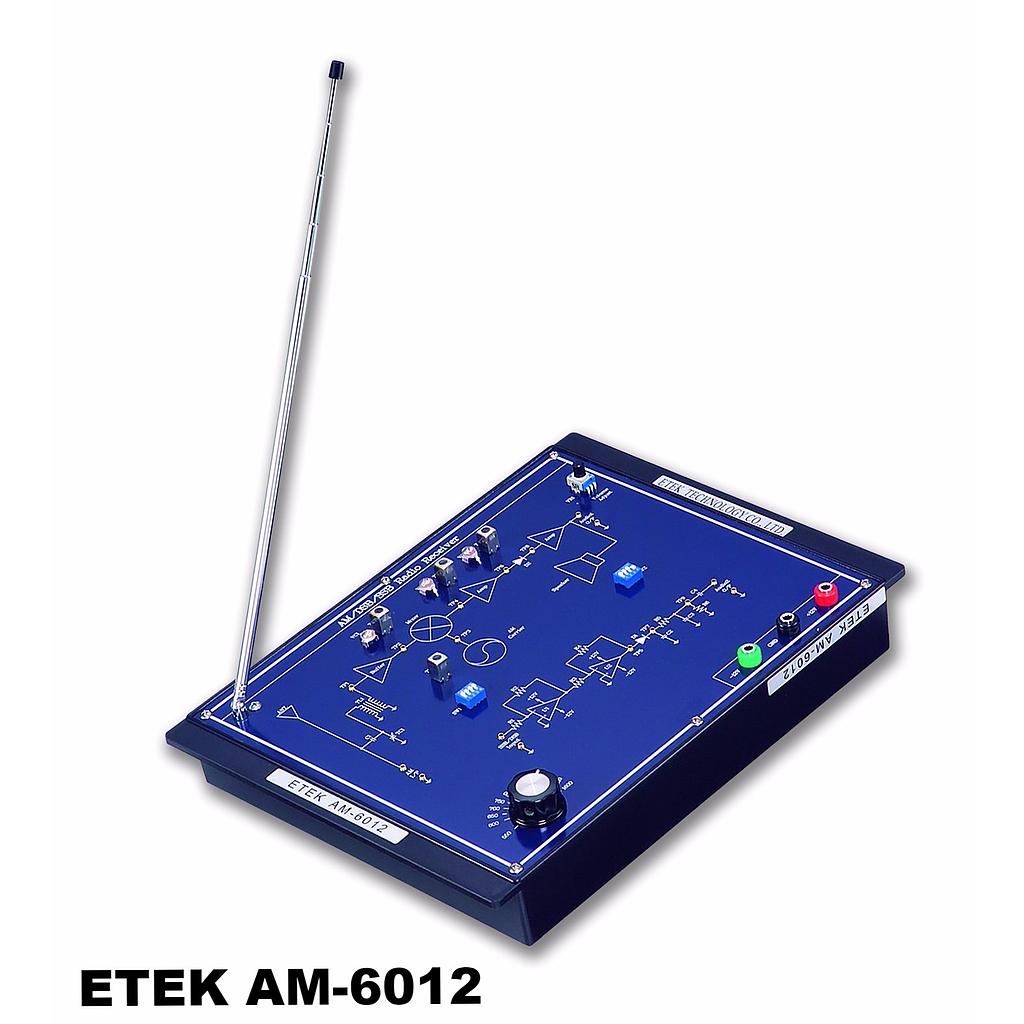

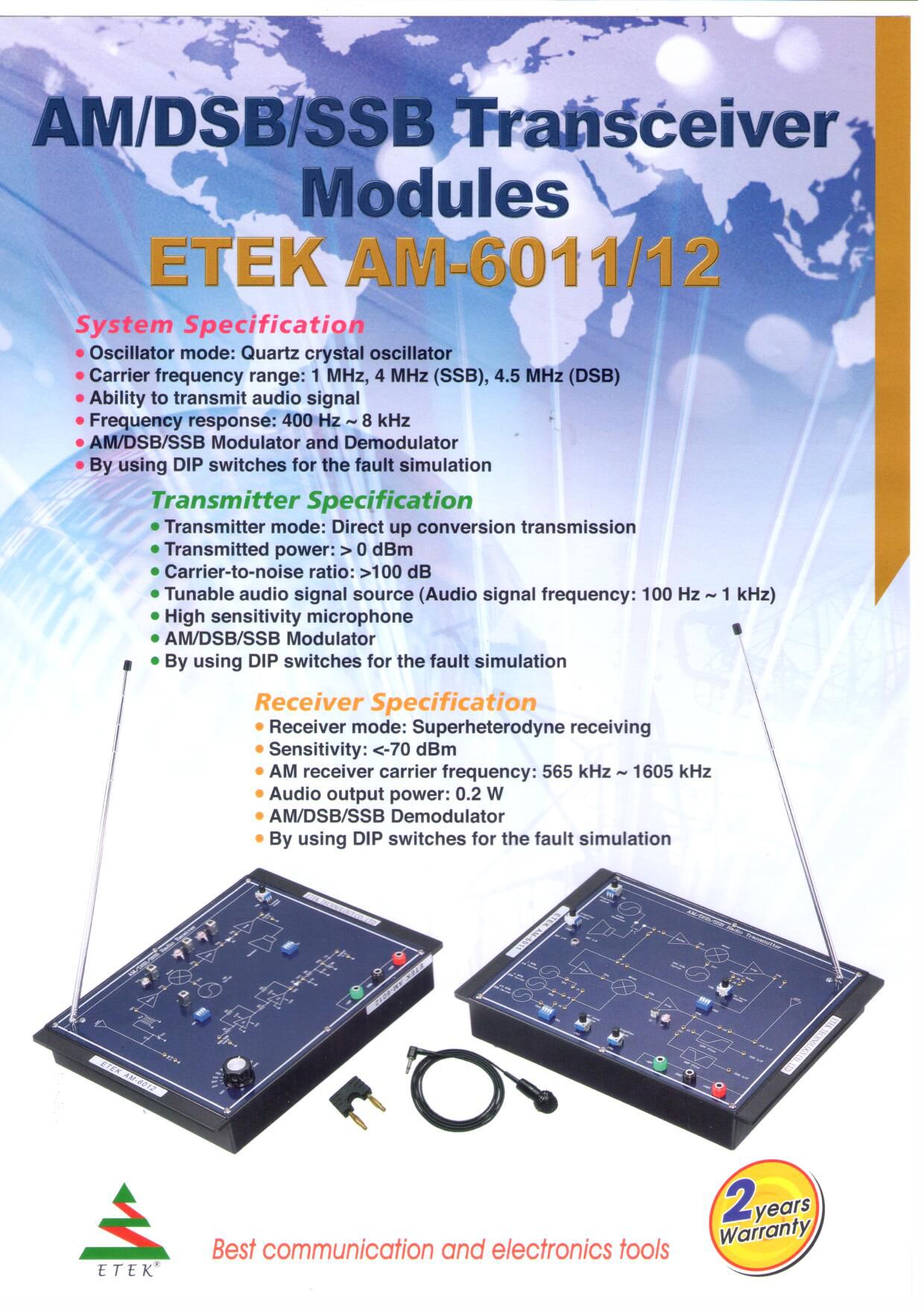

ETEK AM-6011/12 AM/DSB/SSB Transceiver Modules (1 MHz (AM), 4 MHz (SSB), 4,5 MHz (DSB))

System Specification

1. Oscillator mode: Quartz crystal oscillator

2. Carrier frequency range: 1 MHz (AM), 4 MHz (SSB), 4.5 MHz (DSB)

3. Ability to transmit audio signal

4. Dynamic range:＞70 dBm.

5. Frequency response: 400 Hz ~ 8 kHz

6. AM/DSB/SSB Modulator and Demodulator

7. By using DIP switches for the fault simulation

Transmitter Specification

1. Transmitter mode: Direct up conversion transmission

2. Transmitted power:＞ 0 dBm

3. Carrier-to-noise ratio:＞ 100 dBm

4. Tunable audio signal source (Audio signal frequency: 100 Hz ~ 1 kHz)

5. High sensitivity microphone

6. AM/DSB/SSB Modulator

7. By using DIP switches for the fault simulation

Stereo Receiver Specification

1. Receiver mode: Superheterodyne receiving

2. Sensitivity: ＜-70 dBm

3. AM receiver carrier frequency: 565 kHz ~ 1605 kHz

4. Audio output power: 0.2 W (200 mW)

5. AM/DSB/SSB Demodulator

6. By using DIP switches for the fault simulation

Features
