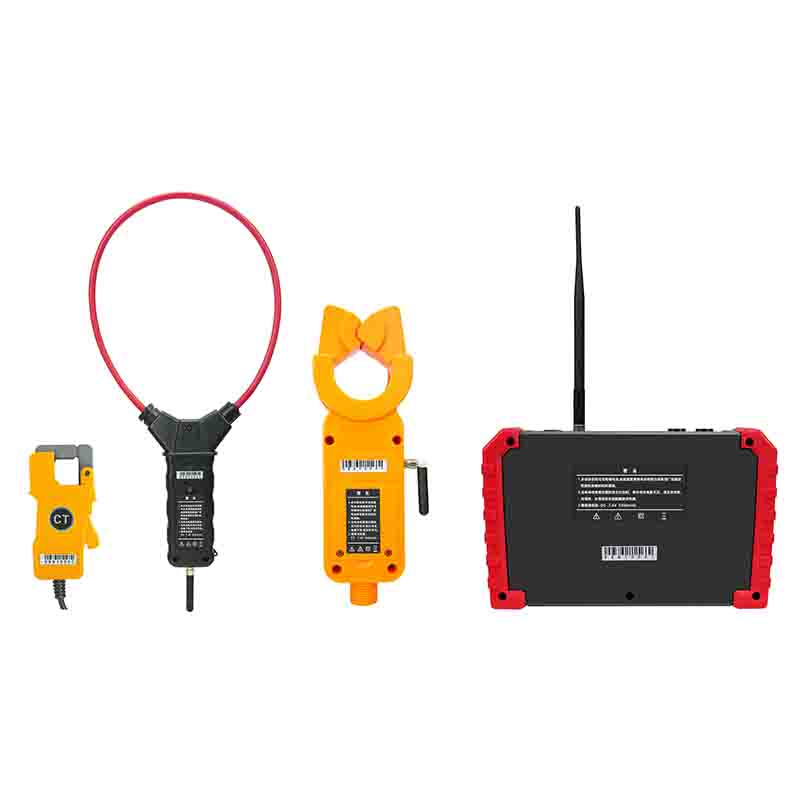

ETCR ETCR9570 Multifunctional High/Low Voltage CT Turn Ratio Tester (≤35kV, 0.0A～800A/3000A, 0.00mA～10A)

Current, variable ratio, angle difference test, polarity and phase difference judgment of the first and second circuits of high and low voltage current transformers

Primary high voltage current clamp range: 0.00A～800A

Primary flexible current clamp range: 0.0A～3000A

Secondary current range: 0.00mA～5A

Variable ratio range: 1～9999

Frequency range: 45Hz～65Hz

Phase range: 0～360°

Power factor range: -1.0000～1.0000

Active power range: 0W～1800kW

Reactive power range: 0Var～1800kVar

Harmonic analysis: 2~31 times

Wireless transmission distance: 40m

Storage function: store 2000 sets of data

USB communication interface

Bluetooth communication

Rechargeable lithium battery
