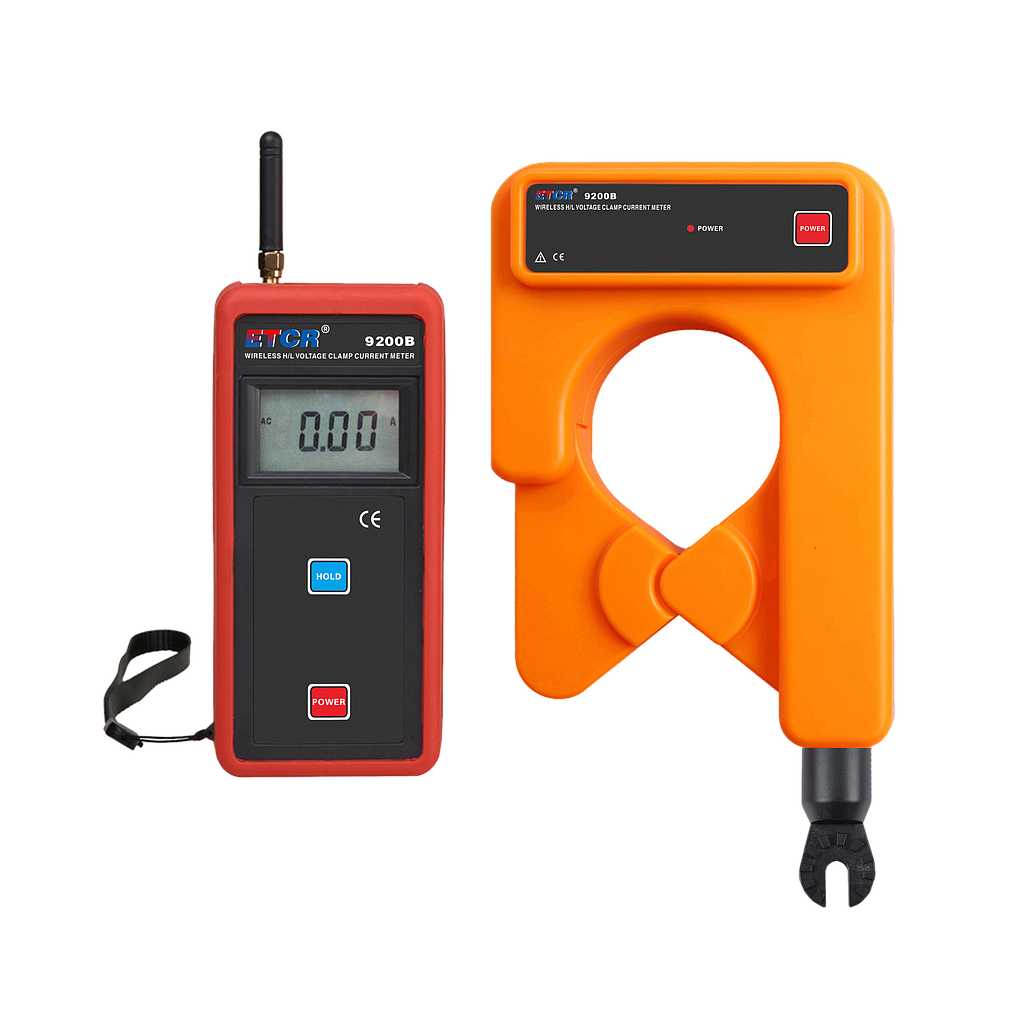

ETCR ETCR9200B Wireless H/L Voltage Clamp Current Meter (Φ68mm, AC 0mA～1200A, receiver)

Power Supply: DC6V alkaline dry battery (1.5V AAA×4)

Display Mode: 4-digit LCD display, backlight function, suitable for dim place

LCD Size:

LCD of detector: 35mm×21.5mm;

LCD of receiver: 47mm×28.5mm

Measurement Method: Clamp CT, integration method

Transmission Mode: 433MHz wireless transmission

Transmission Distance: 30m

Clamp Jaw Size: Φ68mm

Measurement Range: AC 0.00mA~600.0A

Current Frequency: 50Hz/60Hz automatic

Solution: 1mA

Shift Gear: 0.00mA~1200A Fully automatic shift gear

Test Accuracy:

0.00mA~100A: ±1%rdg±5dgt

100A~599A： ±1.5%rdg±5dgt

600A~1200A：±2%rdg±5dgt

Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full

Line Voltage: Suitable for testing insulated line below 60kV, as well as bare conductor or busbar below 35kV. (operate with insulating rod)

Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.

Data Access: "MR" symbol display, can look up all storage data

Sampling Rate: 2 times/second

Overflow Display: Exceed measure range overflow function:"OL A" symbol display

No Signal Indication: When the receiver has not received transmit signal, dynamic display "no- -"symbol

Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption

Battery Voltage: When battery voltage is lower than 4.8V, low battery voltage symbol display and remind to replace battery.

Meter Size: 135mm×215mm×60mm

Weight:

Meter: about 620g (include battery),

Receiver: about 330g(include battery),

Total weight: about 4kg(include insulating rod and battery)

Interference: No 315MHz, 433MHz same frequency signal interference

Telescoping Insulating Rod Size: About 4300mm

Insulation Strength: AC 60kV/rms (The telescopic insulating rod is completely pulled apart, between the two ends)

Structure: Anti-drip type Ⅱ

Working Temperature & Humidity: -20℃~40℃; below 80%RH

Storage Temperature & Humidity: -20℃~60℃; below 70%RH
