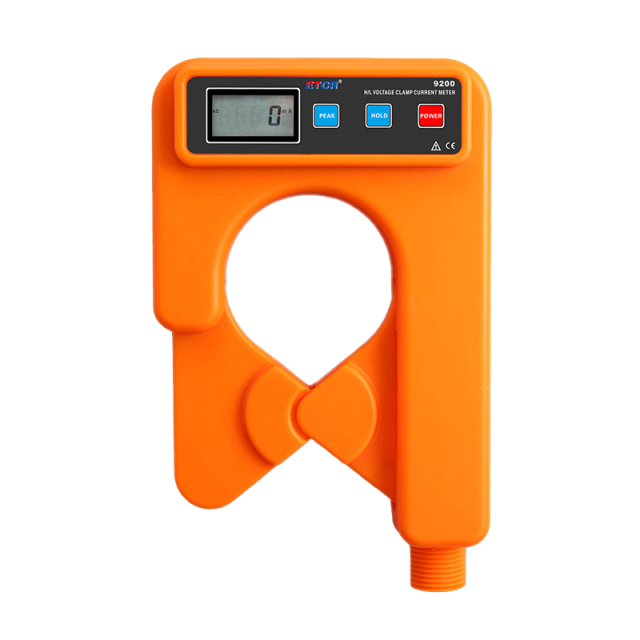

ETCR ETCR9200 H/L Voltage Clamp Current Meter (Φ68mm, AC 0mA～1200A)

Power Supply: DC6V alkaline dry battery (1.5V AAA×4)

Display Mode: 4-digit LCD display, backlight function, suitable for dim place

LCD Size: 35mm×21.5mm

Measurement Method: Clamp CT, integration method

Clamp Jaw Size: Φ68mm

Measurement Range: AC 0.00mA~600.0A

Current Frequency: 50Hz/60Hz automatic

Solution: 1mA

Shift Gear: 0.00mA~1200A Fully automatic shift gear

Test Accuracy:

0.00mA~100A: ±1%rdg±5dgt

100A~599A： ±1.5%rdg±5dgt

600A~1200A：±2%rdg±5dgt

Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full

PEAK Hold: Automatically hold the test value at high point. Usually Press PEAK key in the test mode ,the PEAK lamp lights up. The peak hold function is enabled, press PEAK key again to cancel this function.

Line Voltage: Suitable for testing insulated line below 60kV, as well as bare conductor or busbar below 35kV. (operate with insulating rod)

Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.

Data Access: "MR" symbol display, can look up all storage data

Sampling Rate: 2 times/second

Overflow Display: Exceed measure range overflow function:"OL A" symbol display

Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption

Battery Voltage: When battery voltage is lower than 4.8V, low battery voltage symbol display and remind to replace battery.

Meter Size: 135mm×215mm×60mm

Weight: Meter: about 620g (include battery), Total weight: about 4kg(include insulating rod and battery)

Interference: No 315MHz, 433MHz same frequency signal interference

Telescoping Insulating Rod Size: About 4300mm

Insulation Strength: AC 60kV/rms (The telescopic insulating rod is completely pulled apart, between the two ends)

Structure: Anti-drip typeⅡ

Working Temperature & Humidity: -20℃~40℃; below 80%RH

Storage Temperature & Humidity: -20℃~60℃; below 70%RH
