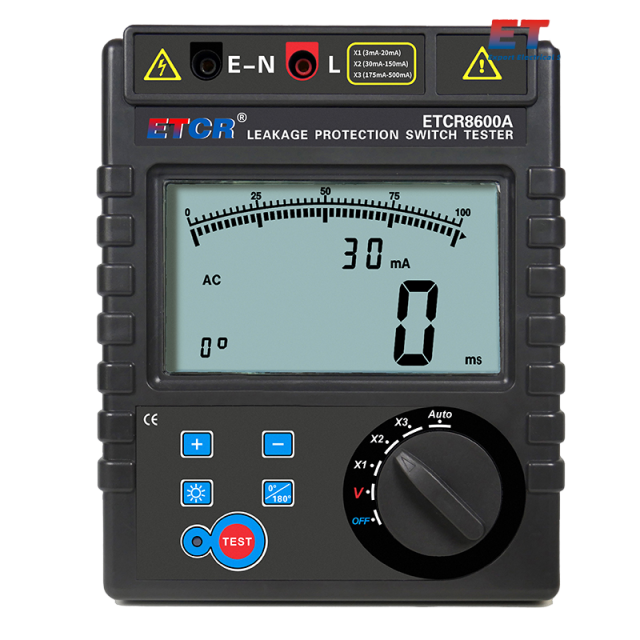

ETCR ETCR8600A Leakage Protector Tester (3mA~500mA, 18 gears, 0ms~999ms, AC 0~600V)

Power Supply: DC 9V (alkaline dry battery LR14 1.5V 6 PCS)

Display Mode: 4-digit super large LCD display with white screen backlight

LCD Size: 128mm×75mm; display area: 124mm×67mm

Rated Voltage:AC 220V (The rated voltage of tester is AC 220V during leakage protection switch testing)

Test Line Voltage: 220V/380V

Leakage Current Gear: 3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA

Gear Current Accuracy: ±10%rdg+5dgt

Knob Gear: OFF; V; X1; X2; X3; Automatic gear (6 gears)

Test Mode

Manual:

X1 (3mA, 5mA, 7mA, 10mA, 15mA, 20mA)

X2 (30mA, 35mA, 50mA, 100mA, 125mA, 150mA)

X3 (175mA, 250mA, 275mA, 300mA, 375mA, 500mA)

Automatic: Auto (3mA~500mA)

Test Range Of Leakage Operating Time: 0~999ms

Accuracy Of Leakage Operating Time: ±5%rdg±3dgt

AC Voltage Measurement Range: 0~600V

AC Voltage Accuracy: ±2%rdg±5dgt

Phase Selection: 0°/ 180°

Data Hold: The interface will automatically maintains the display of test result after completing test.

Failure Message Indication: LCD displays “999” timeout indication, indicates that tested rated operating current gear is low or leakage protector has fault.

Length of test line: 1.5m

Tester Size: 215mm×178mm×83mm

Weight: Host: about 955g (include battery); Total weight: 2kg (include accessory)

Battery Voltage: When the battery voltage drops to 7.4V, the low battery voltage symbol is displayed to remind the battery to be replaced.

Working Current: 100mA Max

Insulation Withstand Voltage: 100MΩ or greater, AC2kV/rms(between the housing and screw)

Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) IEC61326(EMC Standard)

Working Temperature & Humidity: -10℃~40℃; below 80%RH

Store Temperature & Humidity: -10℃~60℃; below 70%RH
