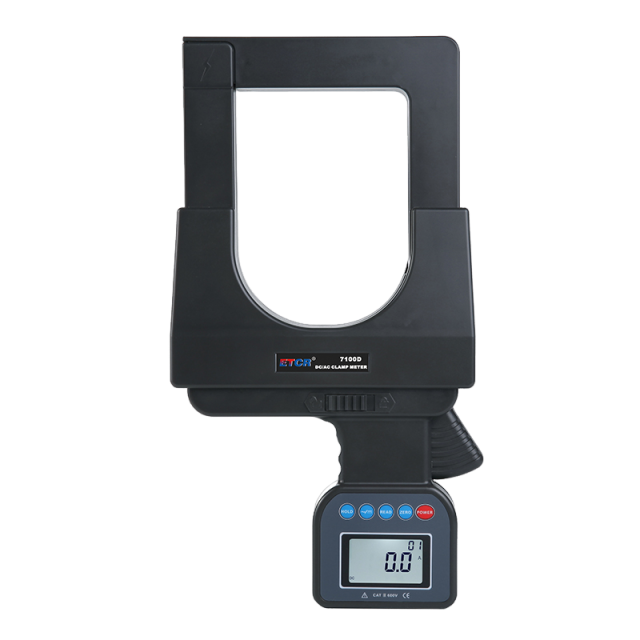

ETCR ETCR7100D Super Large Caliber DC/AC Clamp Leakage Current Meter (108mm×148mm, 1000AAC, 2000ADC, USB)

Power Supply: DC6V Alkaline dry battery LR6 1.5VX4

Display Mode: 4-digit LCD display

LCD Size: LXW: 47mm×28.5mm

Measurement Range: DC: 0.0A~2000A AC: 0.0A~1000A

Solution: 0.1A DC/AC

Accuracy

0.0A~999A: ±2%rdg±5dgt

1000A~1499A: ±3%rdg±5dgt

1500A~2000A: ±4%rdg±5dgt

Clamp Jaw Size: 108mm×148mm(can clamp φ108mmcable or 160mmx4mm flat cable or steel flat ground cable)

Reference Condition: 23℃±3℃, below 75%rh,The conductor is at the center of the clamp

Sampling Rate: 2 times/second

Measurement Method: Clamp CT, Non-contact measurement

Wire Position: The tested wire should be in the center of the clamp jaw, clamp with off-center position will increase the error for max 2%rdg

Polar Indication: Automatic identification for DC current detecting, display "-" symbol

Shift Gear: Fully automatic shift

Line Voltage: Line measurement below 600V

Software: Yes, storage data of meter can be uploaded to computer by software

USB Interface: With USB interface, storage data can be uploaded to computer, software monitoring.

Memory: 99 groups, flicker to display “FULL”symbol indicate storage full

Peak Hold: Peak value capture and hold function, during the testing. long press the HOLD key to display the peak value.

Data Hold: Data hold function: “HOLD”symbol display

Overflow Display: Exceed measure range overflow function: “OL ”symbol display

Auto Shut Down: 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption

Battery Voltage: While battery voltage decrease to about 4.6V,low battery voltage symbol display, and remind to replace the battery.

Meter Size: 350mm×180mm×55mm

Weight: Meter: 1.5kg(include battery);package: about 2.6kg(include accessory)

Insulating Strength: AC3700kV/rms(Between backcover screw and shell)

Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)

Working Current: 20mA

Working Temperature & Humidity: -10℃~40℃; below 80%RH

Storage Temperature & Humidity: -10℃~60℃; below 70%RH
