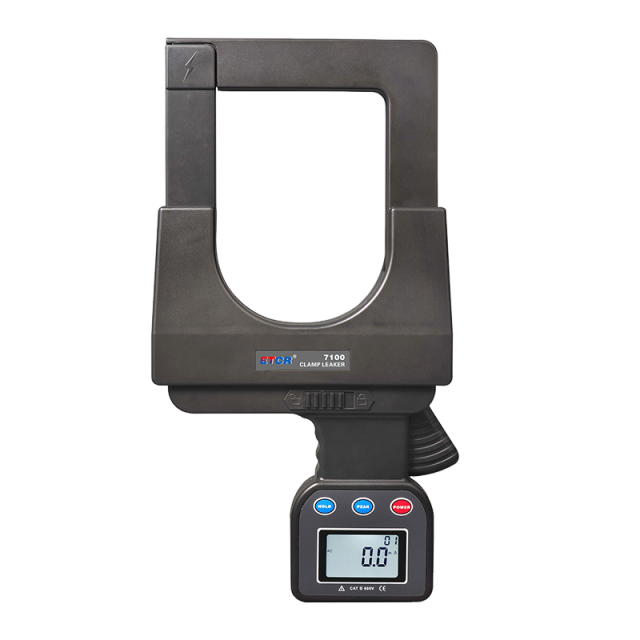

ETCR ETCR7100 Super Large Caliber Clamp Leakage Current Meter (108mm×148mm, 3200AAC)

Current Range: AC 0.0mA~3200A

Max Resolution: AC 0.1mA

Current Accuracy(23℃ ±3℃, below 70%RH, measured wire at the center of the clamp)

AC 0.0mA~499A ±2%rdg±5dgt

AC 500A~999A ±3%rdg±5dgt

AC 1000A~2999A ±4%rdg±5dgt

AC 3000A~4000A ±5%rdg±5dgt

Power Supply: DC6V alkaline dry batteries (LR6 1.5VX4PCS)

Weight: 1920g (include battery)

Meter Dimension: 350mmX180mmX55mm

CT Size: 108mmX148mm (can clamp φ108mm cable or 160mmX4mm flat cable or steel flat ground cable)

Sampling Rate: 2 times/second

Frequency: 50Hz, 60Hz automatic identification

Communication Interface: With USB interface, storage data can be uploaded to computer, convenient to data analyze, communication cablelength: 1.8m

Data storage: 99units, flash display “FULL” symbol indicate storage full

Data Hold: Data hold function: “HOLD” symbol display

Overflow Display: Exceed measure range overflow function: “OL” symbol display

PEAK Hold: Press PEAK key to open the peak hold function, press PEAK key once again to cancel this function

Auto Shut Down: 5 minutes after power on, it will power off automatically without any operation to reduce the power consumption.

Battery Voltage: While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery

Backlight: Yes

Line Voltage: Below AC 600V circuit measurement

Accessories: Meter: 1PCS; USB communication cable: 1PCS; Meter Case: 1PCS; LR6 battery: 4PCS
