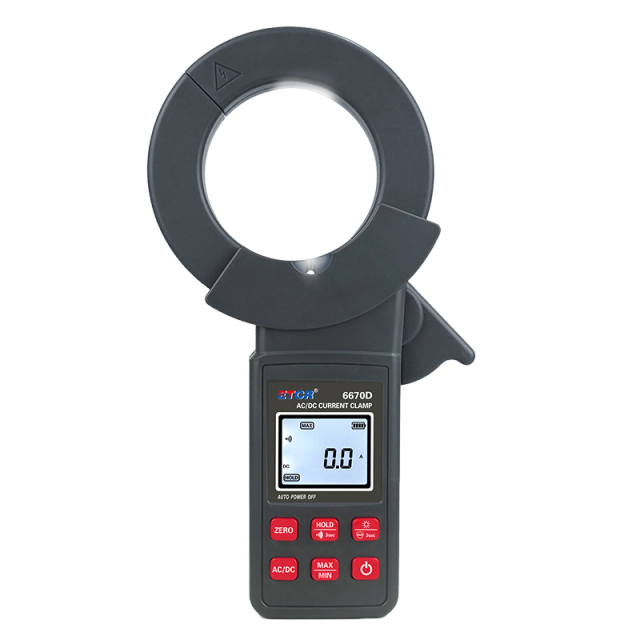

ETCR ETCR6670D Large Caliber DC/AC Clamp Leakage Current Meter (Φ70mm, 1500AAC, 2000ADC, Bluetooth)

Range

DC 0.0A~2000A

AC 0.0A~1500A

Resolution: AC/DC 0.0A

Max Accuracy: ±2%rdg±5dgt

CT Size: Φ70mm

Meter Dimension: 237mmX131mmX40mm

Weight: 477g

Power Supply: Rechargeable lithium battery DC3.7V/1000mAh

LCD Size: 43mmX38mm; display area: 36.5mmX29mm

LCD Backlight: Yes

Spotlight: Yes

Max/Min Value: Yes

Average Value: Yes

Data Hold: Yes

Data Store: 2000groups (Store with APP)

Overflow Display: Exceed measure range overflow function: “OL ” symbol display

Bluetooth Communication: Yes, can test or view the test results on mobile after installing the APP.

Automatic Shutdown: 5 minutes without any operation after starting up, will shutdown automatically to reduce the power consumption.

Working Current: 60mA (open spotlight 72mA)

Line Voltage: Circuit line test below 600V

Working Condition: -10℃~50℃; below 80%RH

Dielectric Strength: AC 3700V/rms(between the core and shell)

Accessories: Meter: 1PCS; Charge adaptor: 1set; Tool bag: 1PCS
