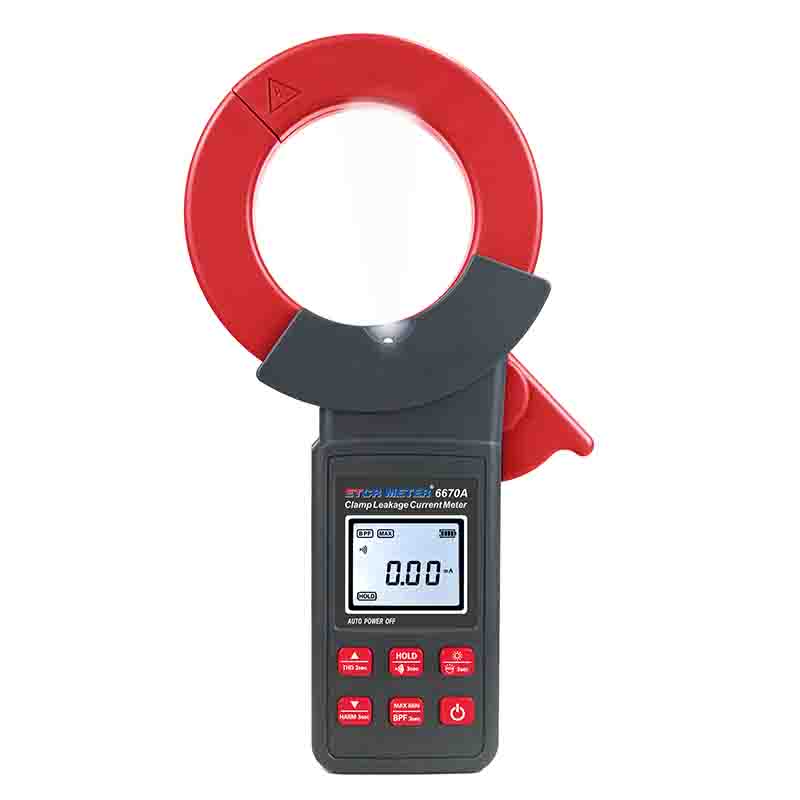

ETCR ETCR6670A High Precision Clamp Leakage Current Meter (Φ70mm, 1200AAC)

Range: AC 0.00mA~1200A

Resolution: AC 0.01mA

Max Accuracy: ±1.5%rdg±5dgt

CT Size: Φ70mm

Meter Dimension: 237mmX131mmX40mm

Weight: 0.78kg (include battery)

Power Supply: DC9V, Alkaline dry battery (6LR61 9V)

LCD Size: 43mmX38mm; display area: 36.5mmX29mm

LCD Backlight: Yes

Spotlight: Yes

Filter Function: Filter open: 40Hz~70Hz; Filter close: 40Hz~1kHz

Harmonic Analysis: 21times (above 10mA)

Distortion Rate: Yes (above 10mA)

Max/Min Value: Yes

Average Value: Yes

Data Hold: Yes

Data Storage: 2000 groups (Store via APP)

Overflow Display: Exceed measure range overflow function: “OL ” symbol display

Bluetooth Communication: Yes, can test or view the test results on mobile after install the APP.

Automatic Shutdown: 5 minutes after power on, will shutdown automatically without any operation to reduce the power consumption.

Working Current: 20mA (open spotlight 40mA)

Line Voltage: Below 600V line test

Working Condition: -10℃~50℃; below 80%RH

Dielectric Strength: AC 3700V/rms(between the core and shell)

Accessories: Meter: 1PCS; 6LR61 battery: 1PCS; Tool bag: 1PCS
