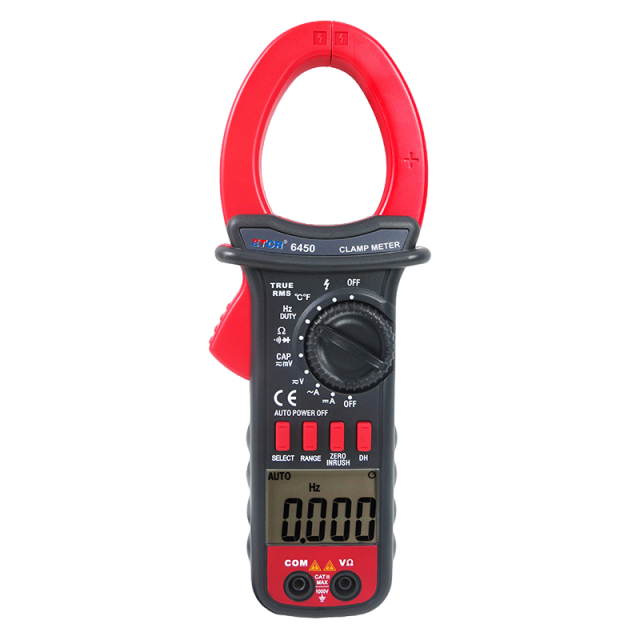

ETCR ETCR6450 Clamp Type Multimeter (AC 1000V, DC 600V, AC/DC 1000A, 40MΩ, 10mF, 40MHz)

Power Supply: 9V DC 6F22×1 PCS alkaline dry battery

LCD Size: 50.8mm×37mm

DC Voltage:Range: 400mV/4V/40V/400V/1000V | ±(0.8%+2)

AC Voltage:Range:400mV/4V/40V/400V/700V | ±(1.2%+5)

DC CurrentRange: 40A/400A/1000A | ±(2%+5)

AC Current:Range: 4A/40A/400A/1000A | ±(2%+10)

Resistance:Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+3)

Capacitance:Range: 10nF/100nF/1uF/10uF/100uF/1000uF/10mF | ±(3%+20)

Frequency:Range: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz | ± (0.5%+3)

Temperature:Range: -50°C～1000°C | ±(1%+4)

Automatic Range: √

Manual Range: √

AC Conversion Type: True effective value(TRMS)

Input Protection: √

Automatic Shutdown: About 10 minutes, can be set to no automatic shutdown

Diode Test: Can measure the LED work voltage below 3V

Duty Ratio Measurement: √

NCV (Live line) Measurement: √

Short Circuit Buzzer: √

Low Voltage lndicator: √

Input Impedance: About 10MΩ

Data Hold: √

Surge Signal Measurement: √

Clamp Jaw Size: Can measure max wire diameter Ф52mm

Meter Size: 249mm×89mm×38mm

Weight:About 360g (include battery); total weight: about 0.6kg (include accessory)

Working Temperature: 0℃～40℃ relative humidity <75%

Store Temperature: -10℃～ 50℃ relative humidity <80%
