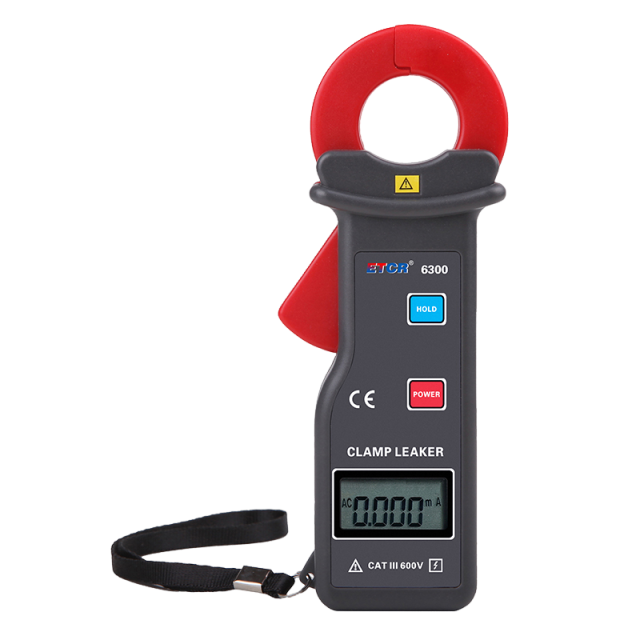

ETCR ETCR6300 High Precision Clamp Leakage Current Meter (25mm×30 mm, 60 AAC)

Power Supply: Alkaline dry battery 6LR61 9V

Display Mode: 4 digits LCD display

LCD Size: 35mm×21.5mm; display area: 32mm×15mm

Current Measurement Range: 0.000mA~60.00A

Solution: 1uA

Measurement Accuracy:±1.5%rdg±5dgt

Clamp Jaw Size: 25mm×30mm

Meter Size: 175mm×70mm×38mm

Weight: 210g(include battery)

Test Mode: Clamp CT, integration method

Sampling Mode: about 2 times/second

Frequency: 50Hz, 60Hz Automatic identification

Shift Gear: Fully automatic shift

Line Voltage: Line measurement below DC 600V

Memory: 99 groups, flicker to display ”FULL” symbol indicate storage full

Peak Hold: Peak capture and hold function, long press HOLD key and not release can display peak value in measurement.

Data Hold: Data hold function: “DH”symbol display

Overflow Display: Exceed measure range overflow function: “OL”symbol display

Communication Interface: USB interface

Auto Shut Down: 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption

Battery Voltage: While battery voltage decrease to about 2.8V,low battery voltage symbol display, and remind to replace the battery.

Working Current: 5mA

Insulating Strength: AC2kV/rms(between the core and outside shell)

Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)

Working Temperature & Humidity: 0℃~40℃; below 80%RH

Storage Temperature & Humidity: -10℃~60℃; below 70%RH
