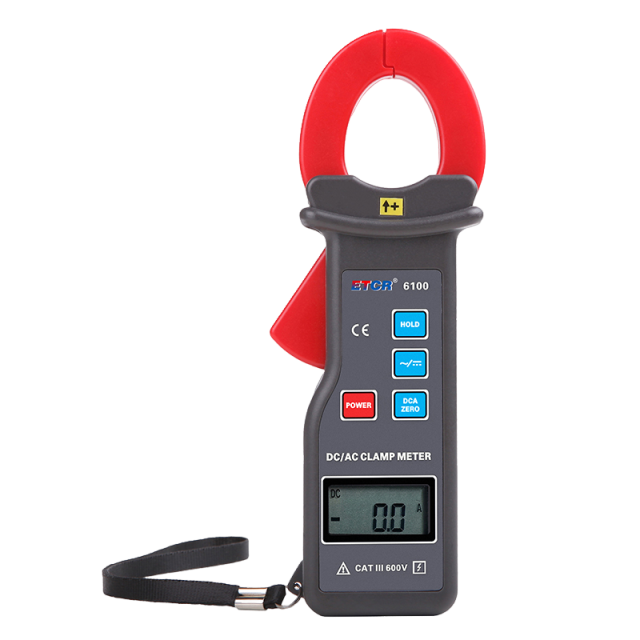

ETCR ETCR6100 DC/AC Clamp Leakage Current Meter (30mm×35mm, 1000AAC/DC)

Range: AC/DC 0.0A~1000A

Resolution: 0.1A

Accuracy: ±2%rdg±3dgt

CT Size: 30mmX35mm

Meter Dimension: 175mmX70mmX38mm

Weight: 200g (include battery)

Power Supply: DC9V Alkaline battery 6LR61 9V

Working Current: 10mA

LCD Size: 35mmX21.5mm; display area: 32mmX15mm

Sampling Rate: 2 times/s

Communication Interface: Storage data can be uploaded to computer save and print

Communication Parameters: Baud rate: 9600, data bit: 8, stop bit: 1, check bit: NONE

Data Storage: 99 groups, flash display “FULL” symbol indicate memory full

Data Hold: Data hold function: “DH” symbol display

Overflow Display: Exceed measure range overflow function: “OL A” symbol display

Polarity Indication: In DC current test auto identified and display“—” symbol

Automatic Shutdown: 5 Minutes without any operation after starting on, the meter will automatically shutdown to reduce the power consumption.

Battery Voltage: When battery voltage drop to 7.2V will display low battery voltage symbol, and remind to replace battery

Line Voltage: Circuit line test below 600V

Shift: Automatically

Accessories: Meter: 1PCS; Communication cable: 1PCS; Cloth Bag: 1PCS; Alkaline battery 6LR61 9V: 1PCS
