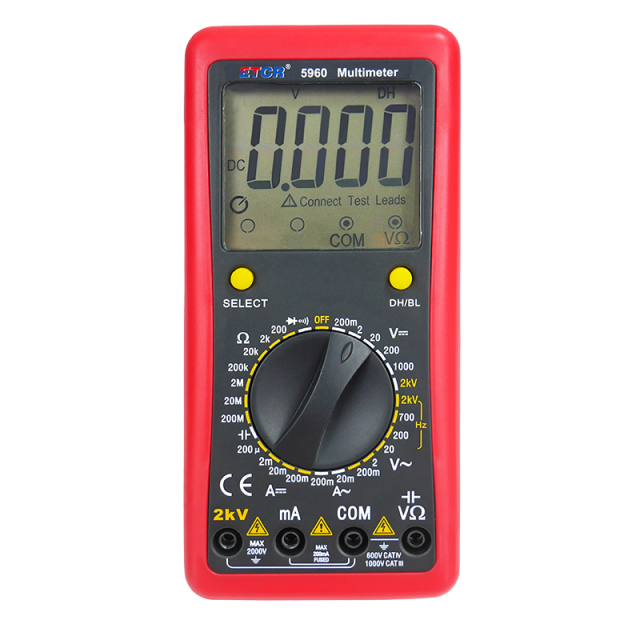

ETCR ETCR5960 Digital Multimeter (AC/DC 2000V, AC/DC 200mA, 20MΩ, 2mF)

Power Supply: 9V DC 6F22×1 PCS alkaline dry battery

LCD Size: 60mm×50mm; Max display: 1999

Voltage Measurement

Range: DC 0.0mV~2000V | Max solution: 0.1mV | Max accuracy: ±(0.5%+5)

Range: AC 0.0mV~2000V | Max solution: 0.1mV | Max accuracy: ±(0.8%+5)

Current Measurement

Range: DC 0.0uA~200mA | Max solution: 0.1uA | Max accuracy: ±(0.8%+5)

Range: AC 0uA~200mA | Max solution: 10uA | Max accuracy: ±(1%+5)

Resistance Measurement: Range: 0.0Ω~200MΩ | Max solution: 0.1Ω | Max accuracy: ±(1%+5)

Capacitance Measurement: Range: 0pF~2000uF | Max solution: 10pF | Max accuracy: ±(3%+10)

Frequency Range: 40Hz~1kHz

Meter Size: 180mm×85mm×42mm

Weight: Meter: about 379g (include battery); Total weight: 680g (include accessory)

Backlight: Yes

Data Hold: Yes

Continuity Test: Yes

Sampling Rate: 2.5 times/second

Automatic Shutdown: After 15minutes will automatic shutdown without any operation

Overflow Display: Exceed measurement range overflow function: "OL" symbol display

Overload Protection: Yes

Input Impedance: About 10MΩ

Battery Voltage: When the low battery indicator symbol is displayed, remind to replace the battery

Line Voltage: Line measurement below AC 600V

Working Temperature: 0℃- 40℃ relative humidity <75%

Store Temperature: -10℃- 50℃ relative humidity <80%
