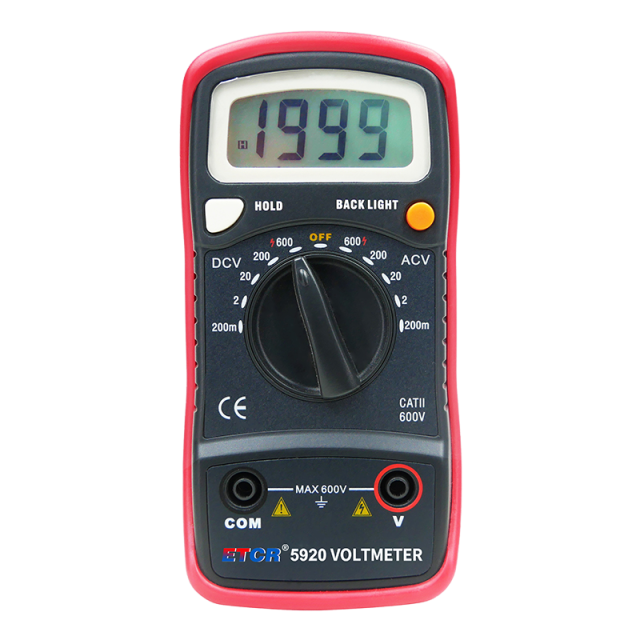

ETCR ETCR5920 Digital Voltmeter (AC/DC 600V, 40Hz~400Hz)

Power Supply: 9V DC 6F22×1 PCS alkaline dry battery

LCD Size: 45mm×15mm; Max. Display: 1999

Voltage Measurement Range

Range: DC 0.0mV~600V | Max. Solution: 0.1mV | Max. Accuracy: ±(0.5%+5)

Range: AC 0.1mV~600V | Max. Solution: 0.1mV | Max. Accuracy: ±(0.8%+5)

Meter Size: 144mm×74mm×40mm

Weight: Meter: about 235g (include battery) ; Total weight: 310g (include accessory)

Frequency Range: 40Hz~400Hz (200V/600V 40~100Hz)

Backlight: Yes

Data Hold: Yes

Overflow Display: Exceed measurement range overflow function: max. display "1”

Overload Protection: 200mV range for 250V, the rest of the range for DC or AC 600V RMS

Input Impedance: 200mV is 1MΩ, the other ranges are10 MΩ

Battery Voltage: When the battery is low, the indicator is displayed to remind you to replace the battery.

Line Voltage: Line measurement below AC600V

Working Temperature: 0℃~40℃ Relative humidity: <85%

Store Temperature: -10℃~50℃ Relative humidity: <85%
