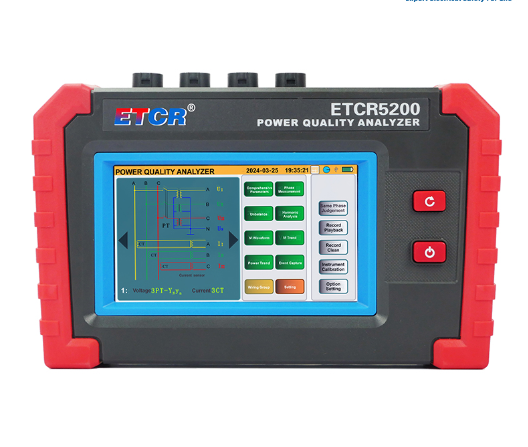

ETCR ETCR5200 Mini Power Quality Analyzer (490mA, 1.0V~600V, 40-70 Hz)

Power Supply: Rechargeable lithium battery 7.4V, 5200mAH, external charger

Display Mode: 5 inch touch colorful screen

Working Current: About 490mA

Clamp Current Sensor (Optional)

Clamp current sensor 015B: 17mmX18mm;

Clamp current sensor 042B: Ф40mm

Clamp current sensor 050B; Ф50mm

Flexible coil current sensor 300FA: Ф300mm

Meter Dimension: 240mmX170mmX68mm

Channel: 3 channels voltage, 4 channels current

Voltage Range: 2V~600V

Current Range

Clamp current sensor 015B: 10mA~10.0A

Clamp current sensor 042B: 0.1A~100A

Clamp current sensor 050B; 1A~1000A

Flexible coil current sensor 300FA: 10A~6000A

Frequency: 40Hz~70Hz

Harmonic: Yes, 2~51 orders

Total Harmonic Distortion: Yes, 2~51 orders, each phase

Three-Phase Unbalance: Yes

Communication Interface: USB

Battery Power Indication: Battery symbol will display battery power, when the battery power too low, the instrument will automatic shutdown

Automatic Shut Down

During record function acting, the meter will not automatic shutdown

During record function off, can setting the automatic shutdown time of 15minutes, 30minutes, 60minutes.

Instrument Weight: Total weight: about 8kg (include all accessories)

Input Impedance: Test voltage input impedance: 1MΩ

Withstand Voltage: The instrument circuit and the housing can withstand 3700V/50Hz sine wave AC voltage for 1 minute.

Insulation: Between the instrument circuit and housing≥10MΩ

Structure: Double insulation, with insulation anti-vibration sheath

Suitable Safety Standard: IEC-61010 CAT III 1000V / CAT IV 600V, IEC-61010-031, IEC-61326, Pollution Degree 2

Working Temperature: -10℃~40℃; Below 80%RH

Storage Temperature: -10℃~60℃; Below 80%RH

Accessories: Host: 1PCS; Instrument bag: 1pcs; Pen probe test lines: 4PCS (each 1PCS of yellow, green, red, black); Alligator clip: 4PCS; Charger 1PCS; 4G Memory card: 1PCS. Clamp current sensor: (optional)
