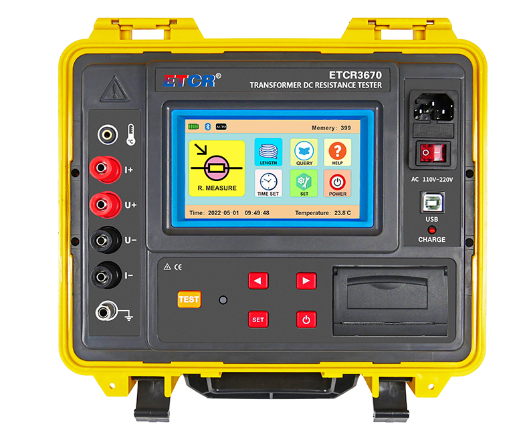

ETCR ETCR3670 Transformer DC Resistance Tester (24V, 50kΩ, AC220V Lithium Battery)

Power Supply: AC 220V/Built-in rechargeable lithium battery DC 22.2V 5200mAh

Measurement Mode: Automatic & Manual

Display Range: 1.0uΩ~50.00kΩ

Range & Test Current

200.0uΩ~50.00kΩ | AUTO

200.0uΩ~20.00mΩ | 10A | 0.2%FS

10.00mΩ~200.0mΩ | 5A | 0.5%FS

100.0mΩ~2.000Ω |1A | 1%FS

1.00Ω~20.00Ω | 100mA | 1%FS

10.00Ω~200.0Ω |10mA CVT |1%FS

100.0Ω~50.00kΩ | 1mA CVT| 1%FS

Max Resolution: 0.1uΩ

Measurement Accuracy: 0.2%

Test Current Gear: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA

Output Voltage: 24V MAX

Temperature Measurement: -55℃~125℃

Data Storage: 600 groups (data will not be lost after power failure or battery replacement)

Conversion Resistance Calculation: Conversion according to the tested object temperature and material

Discharge Function: After testing discharge automatic, discharge indication clear and avoid the wrong operation

Automatic Shutdown: After setting automatic shutdown, the tester will automatic shutdown after 15 minutes without any operation

Display Mode: 5 inch colorful touch screen, resolution ratio 480X854

Host Dimension: 280mmX260mmX160mm

Weight: Total weight: 6.4kg(include all accessories)

Printer: Built-in printer

Bluetooth Communication: Yes

USB Interface: With USB interface, software monitoring, storage data can be uploaded to computer, save and print. Accessories: Tester: 1PCS; Power line: 1PCS; Test wires(10m): 2PCS; Ground line: 1PCS; Charger: 1PCS; Temperaturesensor; 1PCS; USB communication cable: 1PCS; 3.75mΩ standard resistance: 1PCS; Tool bag : 1PCS; Print paper: 1roll
