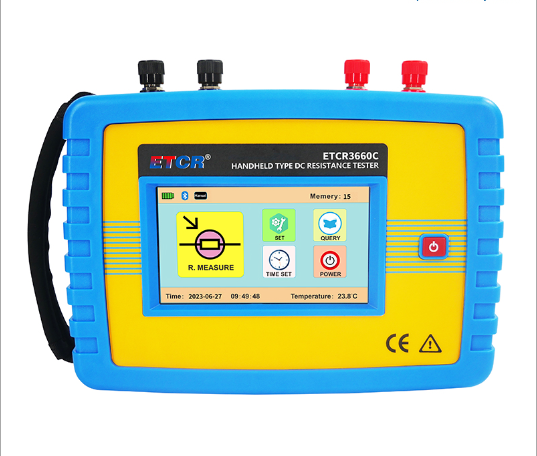

ETCR ETCR3660 DC Resistance Tester (24V, 1.0uΩ~50kΩ, 22.2V Lithium Battery)

Power Supply: DC 22.2V 5200mAh rechargeable lithium battery

Measurement Mode: Automatic & Manual

Display Range: 1.0uΩ~50.00kΩ

Range & Test Current

200.0uΩ~50.00kΩ | AUTO

200.0uΩ~20.00mΩ | 10A | 0.2%FS

10.00mΩ~200.0mΩ | 5A | 0.5%FS

100.0mΩ~2.000Ω |1A | 1%FS

1.00Ω~20.00Ω | 100mA | 1%FS

10.00Ω~200.0Ω |10mA CVT |1%FS

100.0Ω~50.00kΩ | 1mA CVT| 1%FS

Max Resolution: 0.1uΩ

Measurement Accuracy: 0.2%

Test Current Gear: 10A, 5A, 1A, 100mA, 10mA, 1mA, AUTO

Output Voltage: 24V MAX

Alarm Setting: Alarm critical value setting range; 1mΩ~2500Ω, 0Ω is not start the alarm function. Do not active the alarm function every starting up the tester

Alarm Indication: When the test value exceeds the alarm setting value, the buzzer will have alarm sound prompt

Real-time Battery Power Indication: When battery voltage drops to DC 22V±0.1V, indicate the battery power not enough and remind to charge intime

Data Storage: 600 groups (data will not be lost after power failure or battery replacement)

Automatic Shutdown: After setting automatic shutdown, 15 minutes without any operation after starting up will automatic shutdown

Display mode: 5-inch true color LCD touch screen

LCD Dimension: 128mmX75mm; Display area:124X67mm

Host Dimension: 280mmX260mmX160mm

Weight: Total weight: 5.8kg(include all accessories)

Bluetooth Communication: Yes

USB Interface: With USB interface, software monitoring, storage data can be uploaded to computer, save and print. Withstand Withstand Voltage: AC 3700V/rms(between the housing and screws)

Accessories: Tester: 1PCS; Test line: 2PCS; USB communication cable: 1PCS; Special charger: 1PCS; Tool bag : 1PCS
