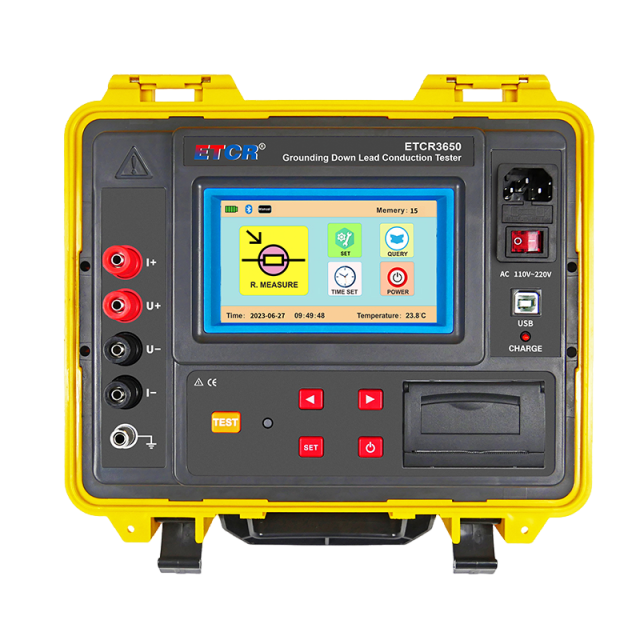

ETCR ETCR3650 Grounding Down Lead Continuity Tester (200.0uΩ~50.00kΩ, 24V)

Measurement Method: Precision 4-wire method, two channel A/D simultaneous detection

Power Supply: AC 220V

Built-in Lithium Battery: DC 22.2V 5200mAh

Measurement Range

1.000mΩ~10.00Ω | AUTO

1.000mΩ~20.00mΩ | 10A

10.00mΩ~200.0mΩ | 5A

100.0mΩ~2.000Ω | 1A

1.00Ω~10.00Ω | 100mA

Max Resolution: 1uΩ

Measurement Accuracy: 0.5%FS

Test Current Gear: AUTO, 10A, 5A, 1A, 100mA

Output Voltage: 24V MAX

Measurement Radius: 50m

Measurement Time: Sampling AD speed 1s/time

Alarm Function: Can set the alarm value, When the test value exceeds the alarm setting value, the buzzer will have alarmsoundprompt

Data Storage: The results are displayed automatically after each testing, data storage 600 groups (data will not be lost after powerfailure or battery replacement)

Discharge Function: Automatic discharge after testing, and discharge indication clear, avoid the misoperation

Automatic Shutdown: After setting automatic shutdown, 15 minutes without any operation after starting up will automatic shutdown

Display Mode: 5 inch colorful touch screen, resolution: 480X854

Host Dimension: 280mmX260mmX160mm

Weight: Total weight: 20.1kg(include all accessories)

Printer: Built-in printer

Bluetooth Communication: Yes, after installing the APP, can view the test result on mobile

USB Interface: With USB interface, software monitoring, storage data can be uploaded to computer, save and print. Withstand Voltage: AC 3700V/rms(between the housing and screws)

Accessories: Tester: 1PCS; Power Line: 1PCS; Test Line: 2PCS(each 1PCS of red and black); Ground lead: 1PCS; Charger: 1PCS; USB communication cable: 1PCS; 3.75mΩ standard resistor: 1PCS; Print paper: 1roll; Tool Case: 1PCS
