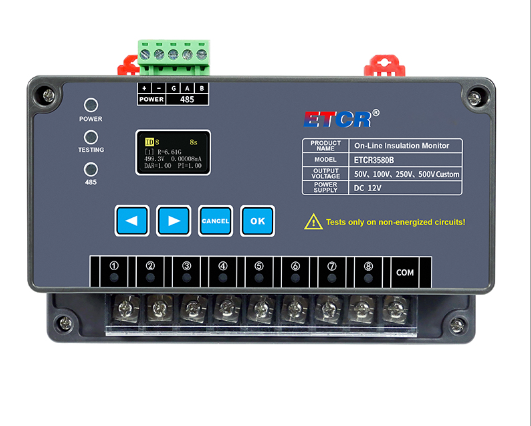

ETCR ETCR3580B Insulation Resistance Online Detector (5mA; 0.1MΩ~20GΩ)

Power Supply: DC 12V(External power supply)

LCD Size: 21.7mmX10.9mm

Output Voltage: 50V, 100V, 250V, 500V Self-set

Short Circuit Current: 5mA MAX

Resistance Test Range: 0.1MΩ~20GΩ

Test Accuracy: ±5%rdg±5dgt

Communication Mode: RS485 communication, Bluetooth communication

Test Time: Insulation resistance: 20 seconds, dielectric absorption ratio: 1 minute, polarization index: 10 minutes, the test time can also be controlled by communication from 1 second to 10 minutes

Data Transmission: Insulation resistance value, output voltage, leakage current, dielectric absorption ratio and polarization index

Test Loop Quantity: 1~8 Channel

LCD Displayer: Display the present testing circuit loop and insulation resistance value

Indicator: Power indication, testing indication, RS485 communication

Installation Mode: Guide rail installation or mounting screw installation

Power Consumption: Standby 2W MAX 8W

Dimension: 169mm×104mm×73mm

Weight: Instrument weight: about 464g; total weight: about 0.6kg(include accessory)

Working Temperature & Humidity: -20℃~60℃; below 80%RH
