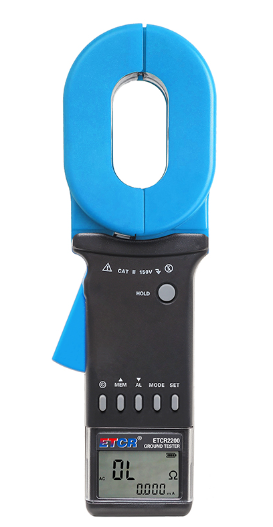

ETCR ETCR2200 High-End MultiFunctional Clamp Earth Resistance Tester (65×32mm, 0.01~1500Ω, 40A)

Clamp Jaw Size: 65mmX32mm

Tester Dimension: 285mmX85mmX56mm Weight 2.3kg (include accessories)

Resistance Range: 0.01Ω~1500Ω

Resistance Resolution: 0.001Ω

Resistance Test Accuracy: ±(1%rdg＋0.01Ω)

Current Range: 0.000mA-40.0A

Current Resolution: 1uA

Current Test Accuracy: ±(1.5%rdg＋0.5mA)

Power Supply: Rechargeable lithium battery DC3.7V 2600mAh

Single Measurement Time: 0.5 s LCD Displayer 4-digit LCD digital display,screen:47mmX28.5mm

Data Storage: 999 Groups Audible & Visual Alarm “Du—du—du” alarm sound

Alarm Threshold Setting Resistance: 1~199Ω; Current: 1~499mA; Voltage: 1~100V

Shift: Automatically

External Magnet / Electric Field :＜40A/m; ＜1V/m

Resistance Test Frequency: ＞1KHz

Interface: USB interface, Software monitoring, Data upload computer

Accessories Meter: 1PCS; Test ring: 1PCS; USB data cable / charge cable: 1PCS; Charger Adaptor: 1PCS; Case: 1PCS
