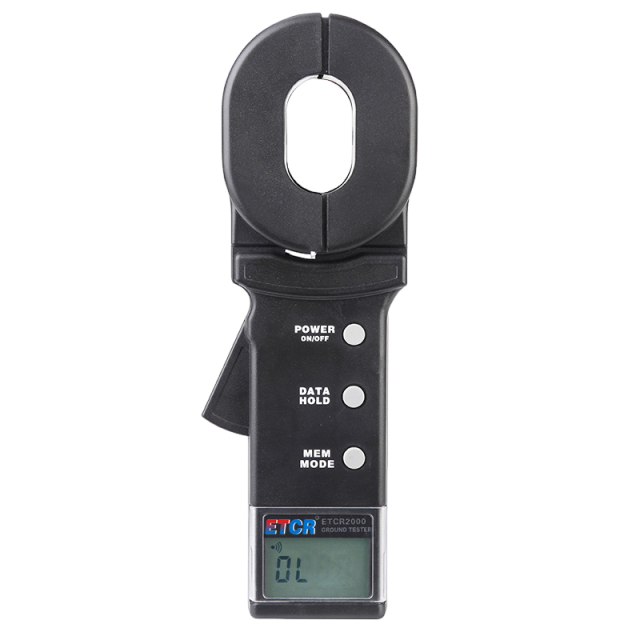

ETCR ETCR2000 Clamp Earth Resistance Tester (55mmX32mm, 0.010Ω~1000Ω)

Measurement Range & Accuracy

Measuring Range/ Resolution/ Accuracy

0.010Ω~0.099Ω/0.001Ω/±(1%rdg＋0.01Ω)

0.10Ω~0.99Ω/0.01Ω/±(1%rdg＋0.01Ω)

1.0Ω~49.9Ω/0.1Ω/±(1%rdg＋0.1Ω)

50.0Ω~99.5Ω/0.5Ω/±(1.5%rdg＋0.5Ω)

100Ω~199Ω/1Ω/±(2%rdg＋1Ω)

200Ω~395Ω/5Ω/±(5%rdg＋5Ω)

400Ω~500Ω/10Ω/±(10%rdg＋10Ω)

600Ω~1000Ω/20Ω/±(20%rdg＋20Ω)

Technical Specification

Power Supply: 6V DC(4 PCS 5 alkaline dry batteries)

LCD Displayer: 4-digit LCD digital display, 47mmX28.5mm

Resistance Measurement Range: 0.010Ω~1000Ω

Max. Resolution Of Resistance Measurement: 0.001Ω

Clamp Jaw Size: 55mmX32mm

Tester Size: 275mmX100mmX56mm

Weight: About 950g (include battery)

Protection Level: Double insulation

Structure Feature: Clamp type

Measurement Range Gear Shift: Automatic

Alarm Threshold Setting Range: Resistance: 1Ω~199Ω

Single Measurement Time: 0.5 Second

Resistance Measurement Frequency: ＞1kHz

Memory: 99 groups

External Magnetic Field: ＜40A/m

External Electric Field: ＜1V/m

Working Temperature: -10℃~55℃

Relative Humidity: 10％~90％
