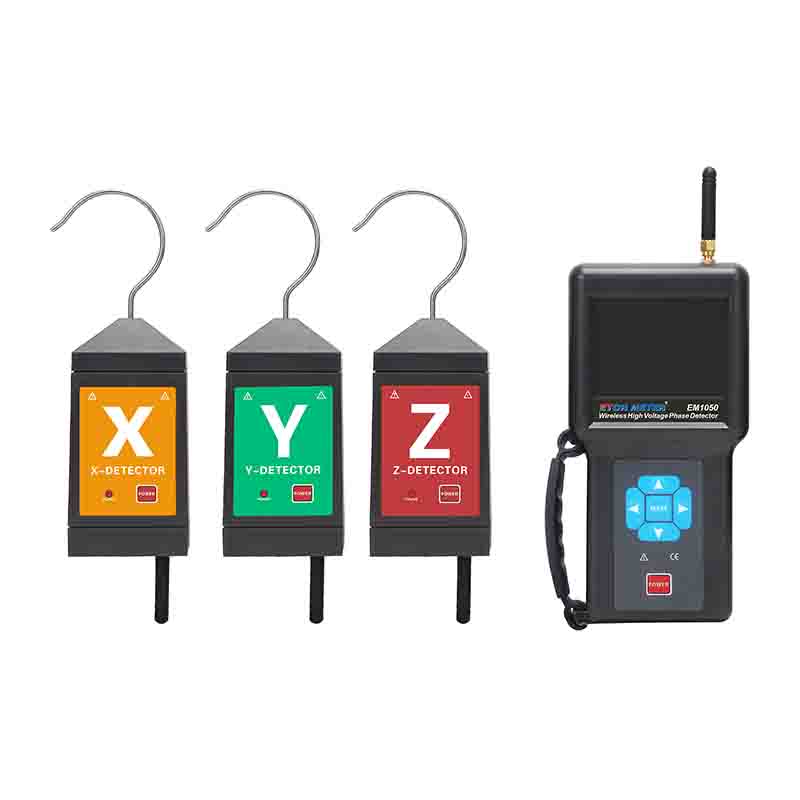

ETCR ETCR1050 Wireless High Voltage Phase Sequence Detector (10V～500kV, 45.0Hz～65.0Hz, 0°～360°)

Power Supply: Host: 3.7V 2600mAh, rechargeable lithium battery; Detector: DC3.7V 1000mAh,rechargeable lithium battery

LCD Size: 3.5 inch color display; display area: 71mmX53mm

Phase Detecting Method

1. Contact mode phase detecting: circuit line below110kV

2.Non-Contact mode phase detecting:when >10kVand <110kVdisplay, phase detecting can be performed on the insulation skin wire,when the line voltage>110kV, must adopt non-contact mode to testing

Phase Detecting Voltage: AC 10V～500kV

Phase Detecting Distance: 200m

Communication Distance: 130m (communication distance between the host and the detector)

Phase Sequence Qualitative: In phase:-20°~20°;out phase:100°~140°and 220°~260°

Range:

test phase：0°～360°

test frequency: 45.0Hz～65.0Hz

Accuracy

phase：≤±8°

frequency：≤±2Hz

Resolution: phase：1°  frequency：0.1Hz

Transmit Frequency: 433MHz

Phase Indication: Vector graphics and numbers are displayed at the same time

Power Indication: The detector has a green power indicator

Electricity Test Indication: du--du--du" buzzing sound

Voltage Level Display Range: 0.4kV～110kV

Display Rate: 2 times/second

Memory: 200 sets (no data will be lost if the battery is powered down or replaced)

Automatic Shutdown: The meter will automatically turn off after about 15 minutes of power-on

Battery Voltage: The host battery has a 4-cell power display. When there is only 1 cell or 0 cells, please charge; when the indicator light of the detector flashes quickly, it means that the battery voltage is low. Please charge.

Rated Current: Detector: 30mA max; host: 150mA max

Length Of Telescopic Insulating Rod: 4300mm

Instrument Size: Host 195mm×100mm×45mm; detector 130mm×65mm×45mm

Weight Host: about 380g (including battery); detector: about 156g×3 (including battery); total mass: about 8kg (including accessories)

Insulation Test After the insulating rod is stretched, both ends: AC 220kV/rms host, detector: AC3700V/rms (between exposed metal and plastic shell)

External Interference: No extra-strong electromagnetic field; no 433MHz co-frequency interference

Protection Level: IP63

Suitable Safety Standaerd:

GB13398-92, GB311.1-311.6-8, 3DL408－91 standards and the newly promulgated national power industry standard "General Technical conditions for 1kV～35kV Portable Nuclear phase Shifters for Live Operation DL/T 971-2017" requirements

Comply with IEC61481-A2; 2004; IEC 61243-1 ed.2:2003 standard

Working Temperature & Humidity: -10℃～40℃; below 80%RH

Store Temperature & Humidity: -10℃～60℃; below 70%RH
