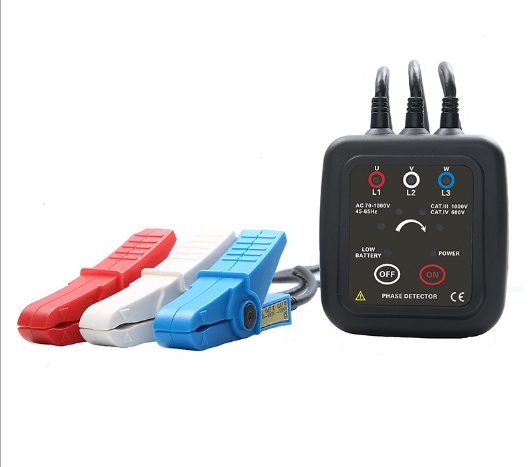

ETCR ETCR1000C Non-Contact Low Voltage Phase Sequence Detector (Φ1.6mm~16mm, AC 70V~1000V)

Power Supply: DC 3V AA alkaline batteries (LR6)X2PCS

Live Power Range: AC70-1000V,45-65Hz(Sine Wave Continuous Input)

Available Clamp Wire Size: external diameter Φ1.6mm～Φ16mm

LED Display

[Positive phase sequence] The phase detector lamp lights up clockwise

[Negative phase sequence] The phase detector lamp lights up counterclockwise

[Live power] L1, L2, L3 lamps light up in setting voltage range

[Default phase] L1 or L2, or L3 lamp is not lighting

[Open circuit] L1 or L2, or L3 lamp is not lighting

Buzzer

[Positive phase sequence] the buzzer sounds intermittently

[Negative phase sequence] the buzzer sounds continuously

Battery Check: The POWER indication lamp light up after boot up; the LOW BATTERY lamp lightup when low battery

Auto Shutdown: 5 minutes after booting up, the meter automatically shutdown

Clamp Lead Length: 0.6m

Meter Size: 70mmX75mmX30mm

Weight: The instrument: 230g (include battery); the total weight: 0.33kg (including accessories)

Max Measure Voltage: AC 1000V

Insulation Strength: 5.4kV/rms

Maximum Rated Power: 300mVA

Suitable Safety Standaerd: EN61010-1:2001, EN61010-031:2002, pollution level 2, CAT Ⅲ1000V, instantaneous overvoltage 6000V

Working Temperature & Humidity: -10℃～55℃; below 80%RH

Store Temperature & Humidity: -20℃～60℃; below 90%RH
