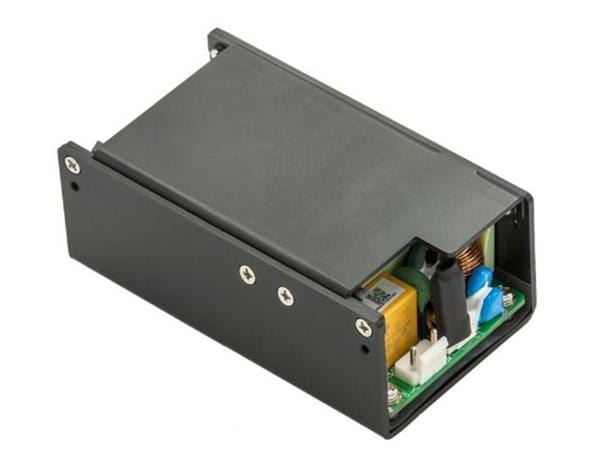

ETA-USA PFT150-48SX-W6 AC/DC Power Supply 150W 90-264VAC 48Vout 3.12A

Width: 58.2 mm (2.291 in)

Height: 41.5 mm (1.634 in)

Length: 105.4 mm (4.15 in)

Industry: Medical, Industrial

Approvals: EN/IEC-62368-1

Dimensions: 105.4 mm x 58.2 mm x 41.5 mm

Efficiency: 93 %

Output Power: 150 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.12 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
