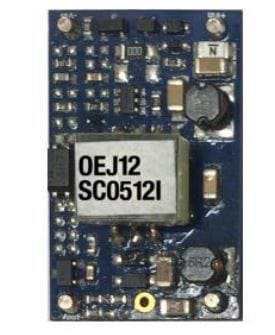

ETA-USA OEJ12SC0512I Isolated 1.5W 4.5-16Vin 12Vout 125mA

Width: 20 mm (0.787 in)

Height: 10 mm (0.394 in)

Length: 32 mm (1.26 in)

Industry: Industrial

Dimensions: 32 mm x 19.5 mm x 8 mm

Efficiency: 80%

Output Power: 1.5 W

Input Voltage: 4.5 V to 16 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 16 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 130 mA

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 20 C
