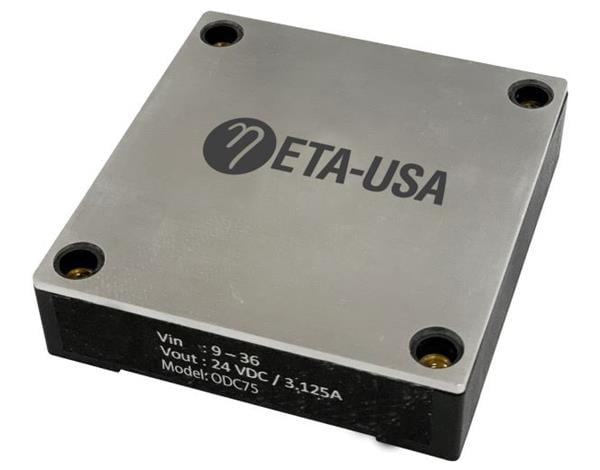

ETA-USA ODC75-24SC48 Isolated 75W 18V-75Vi 24Vo 3.125A DIP-9

Width: 57.7 mm (2.272 in)

Height: 15 mm (0.591 in)

Length: 60.8 mm (2.394 in)

Industry: Industrial

Dimensions: 61 mm x 57.9 mm x 15 mm

Efficiency: 90%

Adjust Type: Adjustable

Output Power: 75 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 3.125 A

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
