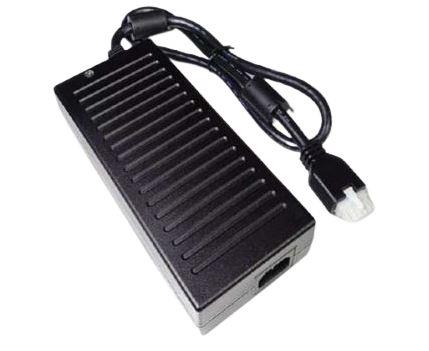

ETA-USA DTE180-03X-F-W6 Desktop AC Adapters 180W 5/12/-12V 15/14/1A

Width: 90 mm

Height: 45 mm

Length: 200 mm

Region: Universal

Industry: Industrial

Efficiency: 86 %

Output Power: 180 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: DIN Connector

Mounting Style: Desktop

Number of Outputs: 3 Output

DC Output Connector: 10 Pin DIN Connector

DC Output Cord Length: 800 mm

Output Current-Channel 1: 1 A

Output Current-Channel 2: 14 A

Output Current-Channel 3: 15 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 V

Output Voltage-Channel 3: - 12 V

AC Plug included/required: Required

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
