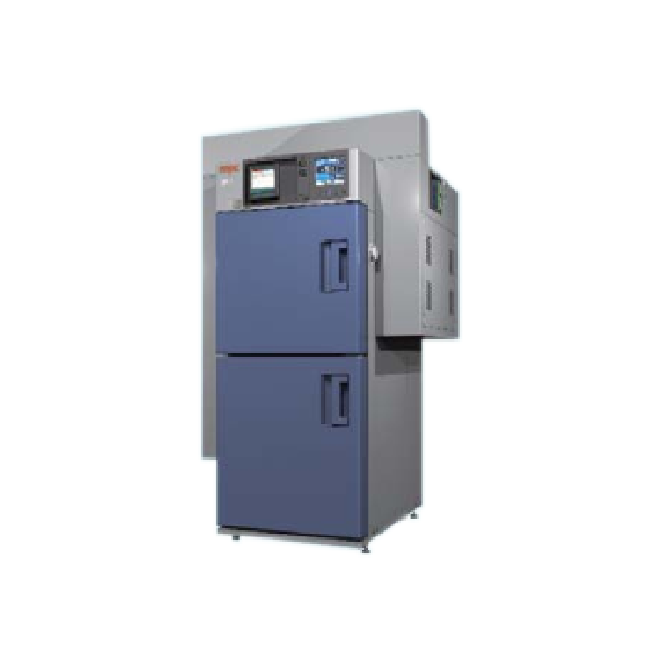

ESPEC TSE-11-A-S Thermal Shock Chamber (60~300°C, -65~0°C, Plastic mold IC 1kg)

Test area:

High-temp. exposure range: +60 to +300°C

Low-temp. exposure range: -65 to 0°C

Hot chamber:

Temperature pull-down time: Within 60 minutes from ambient temperature to +300°C

Cold chamber:

Temperature pull-down time: Within 90 minutes from ambient temperature to -65°C

Temperature recovery performance:

Condition:

High temperature exposure: +300°C (30 minutes)

Low temperature exposure: -45°C (30 minutes)

Specimen: Plastic mold IC 1 kg

Temperature recovery time: Within 10 minutes

Test area dimensions (mm): W320×H148×D230
