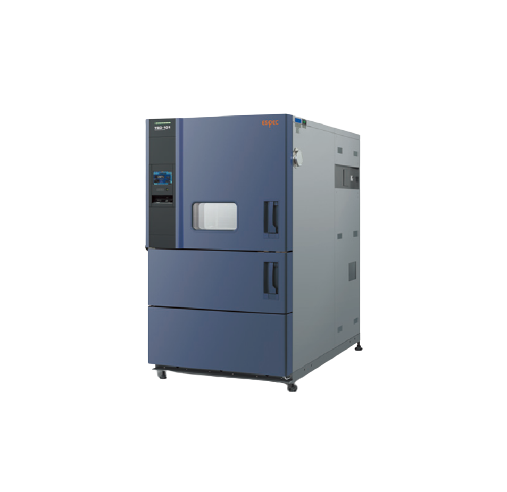

ESPEC TSD-101-W Thermal Shock Chamber (60~205°C, –77~0°C)

System: 2-zone transition by vertical transfer of specimens

Performance:

Test area:

Hot exposure range: ＋60 to ＋205℃ (＋140 to ＋401℉)

Cold exposure range: −77 to 0℃ (−106 to ＋32℉)

Temp. fluctuation: ±1.0℃

Hot chamber:

Heat up time: Ambient temp. to +200°C within 90 min.

Cool chamber:

Pull down time: Ambient temp. to –77°C within 90 min.

Temp. recovery: specimen IC temp. within 15 min.

Inside Dimensions: W710×H345×D410 mm (W27.95×H13.58×D16.14 inch)

Outside dimensions: W1100×H1885×D1965 mm (W43.31×H74.21×D77.36 inch)

Inner volume of test area: 100 L

Weight: Approx. 1100 kg

Utility requirements:

Allowable ambient conditions: ＋5 to ＋40℃ (＋41 to ＋104℉)

Power supply: 380V AC 3φ 50Hz: 34 A

400/415V AC 3φ 50Hz: 32 A

Cooling water supply rate: 2050L/ h (at reference water temp. ＋25℃), 3400L/ h (at reference water temp. ＋32℃)

Cooling water temp. range: ＋5 to ＋38℃ (＋41 to ＋100℉)

Exhaust heat rate: 12600 kJ/h (3000 kcal/h)

INCLUDED ACCESSORIES

● Specimen basket:

(18-8 Cr-Ni stainless steel: 5 mesh metal basket) W700×H40×D410 mm/ load capacity 5kg: 2

● Shelf brackets: 2 sets

● Cartridge fuse (3A, 5A, 7A, 10A, 15A): 4

● Cable port rubber plug: 2

● Perforated cable port cap: 1

● Wire fisher (specimen wiring tool): 1

● Thermocouple: 2

● Specimen temperature input connector: 2

● 3-pole socket (208V AC spec. only): 3

● Nipple R1 1/4 in. (32 A): 1

● Strainer R1 1/4 in. (32 A): 1

● Strainer element R1 1/4 in. (32 A): 1

● Breaker handle cover (except 208V AC): 1

● Operation manual: 1

Datasheet
