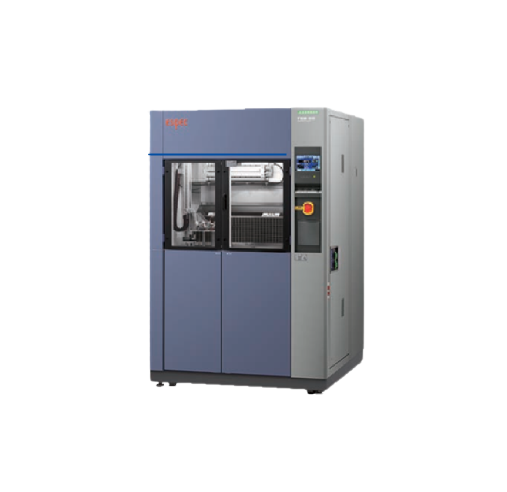

ESPEC TSB-52 Liquid to Liquid Thermal Shock Chamber (70~200℃, −65~0℃, 2kg)

System: 2-chamber system perform transfer of basket

Brine: Single-fluid or dual-fluid fluorine deactivated brine

Utility requirement:

Power supply: 380V AC 3φ 50Hz: 23 A

400V AC 3φ 50Hz: 23 A

Ambient temperature: 0 to ＋40℃

Required air-flow quantity: 15L/ min. (ANR)〈3.6L/ cycle (ANR)〉

Performance:

Hot bath:

Temp. range: ＋70 to ＋200℃ (＋158 to ＋392℉)

Temp. heat-up rate: Ambient temp. → +150℃: within 90 min.

Temp. pull-down rate: ＋150 → ＋ 60℃ Within 100 min.

Cold bath:

Temp. range: −65 → 0℃ (−85 to ＋32℉)

Temp. heat-up rate: − 65 → 0℃ Within 65 min.

Temp. pull-down rate: Ambient temp. → − 65℃ Within 90 min.

Test area:

Specimen basket dimensions: W150×H150×D200mm (Approx. 4.5 L)

Inside bath dimensions: W290×H350×D520mm (Approx. 52 L)

Specimen basket load capacity: 2.0kg

Outside dimensions: W1200×H1785×D1320mm

Chamber (overall) weight: Approx. 790 kg

INCLUDED ACCESSORIES:

● Specimen basket

(18-8 Cr-Ni stainless steel #5 mesh basket)

TSB-22 (W120×H150×D120mm／Approx. 1.0kg): 1

TSB-52 (W150×H150×D200mm／Approx. 2.0kg): 1

● Specimen basket cover: 1 set

● Cartridge fuse (5 A): 1

● Fluid drain hose:

Inner dia.: 12 mm: 2

Inner dia.: 8 mm: 1

● Funnel for fluid supply: 1

● Fluid injection pipe (with rubber cork): 1

● Connector (Terminal for temperature recorder): 1

● Shutter open attachment: 2

●Water absorption mat: 1

● Thermocouple: 1

● Operation manual (CD): 1
