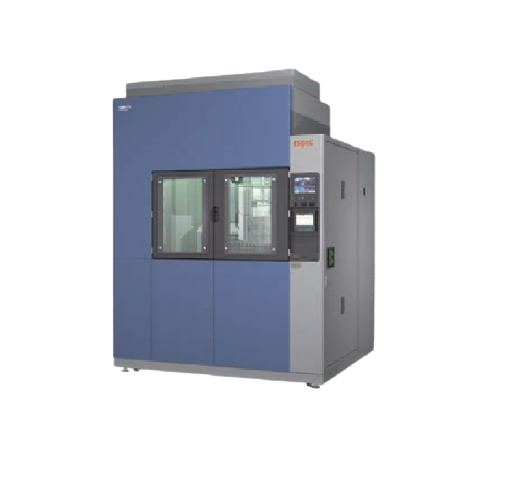

ESPEC TSB-15 Liquid to Liquid Thermal Shock Chamber (60~150℃, -65~0℃, 15L)

System: 2-chamber system perform transfer of basket

Hot bath temp. range: ＋60~150℃

Cold bath temp. range: －65~0℃

Specimen basket dimensions (mm): W215×H195×D350

Specimen basket load capacity (evenly distributed load): 10kg

Outside dimensions (mm): W1610×H2310×D1520

Chamber (overall) weight: Approx. 1150kg

INCLUDED ACCESSORIES:

● Specimen basket

(18-8 Cr-Ni stainless steel #5 mesh basket)

TSB-22 (W120×H150×D120mm／Approx. 1.0kg): 1

TSB-52 (W150×H150×D200mm／Approx. 2.0kg): 1

● Specimen basket cover: 1 set

● Cartridge fuse (5 A): 1

● Fluid drain hose:

Inner dia.: 12 mm: 2

Inner dia.: 8 mm: 1

● Funnel for fluid supply: 1

● Fluid injection pipe (with rubber cork): 1

● Connector (Terminal for temperature recorder): 1

● Shutter open attachment: 2

●Water absorption mat: 1

● Thermocouple: 1

● Operation manual (CD): 1

Datasheet
