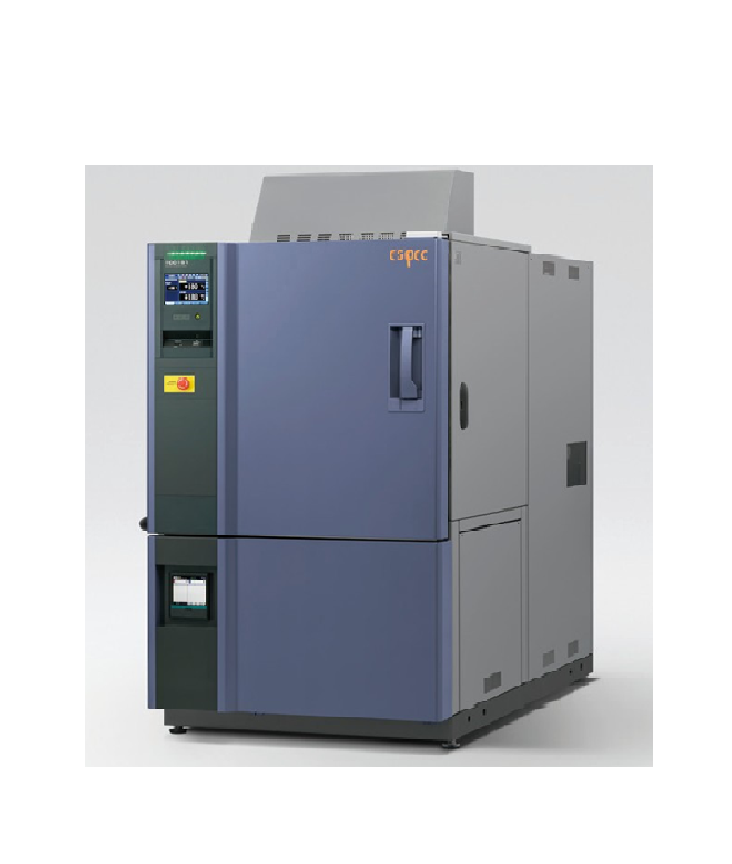

ESPEC TCC−151W Rapid-rate thermal cycle chamber (−70~180℃, 160L, BTC)

System: Balanced Temperature Control system (BTC system)

Performance:

Temperature range: −70 to ＋180℃ (−94 to ＋356℉)

Allowable heat load: 8 kW (−20℃ or more)

Inside dimensions: W800 × H500 × D400 mm

Outside dimensions: W1000 × H1808 × D1915 mm

Capacity: 160 L

Weight: 950 kg

Utility requirements:

Allowable ambient conditions: ＋5 to ＋35℃ (＋41 to ＋95℉)

Power supply: 380V AC 3φ 50Hz, 61A

Cooling water supply pressure: 0.2 to 0.5 Mpa (2 to 5 kg/cm2G)

Cooling water supply rate: 4100L/h (at reference water temp. ＋25℃)

Piping connection size: Carbon steel pipe, ID 32 mm (drain and supply)

Operating cooling water temp. range: ＋5 to ＋32℃ (＋41 to ＋89.6℉)

Accessories

• Flat cable port rubber plug (Silicone sponge rubber): 2

• Specimen basket: 2 (18-8 Cr-Ni stainless steel: 5 mesh per inch)

  W700×H40×D346 mm/ load capacity 5kg

• Shelf brackets (7 positions available, pitch 60mm): 4

• Cartridge fuse:

   200V AC

         Type B, 250V 6A: 1

                      250V 4A: 1

   220V AC, 380V AC, 400V AC

         Type B, 250V 4A: 1

                      250V 5A: 1

                      250V 6A: 1

• Specimen temperature measuring thermocouple:1

• Specimen temperature input connector: 1

• Strainer R11/4 in. (32A): 1

• Nipple R11/4  in. (32A): 1

• Strainer element  (#30 mesh): 1

• Operation manual: 1 set

• Warranty card: 1

*Power cable is optional, not equipped as standard fitting.
