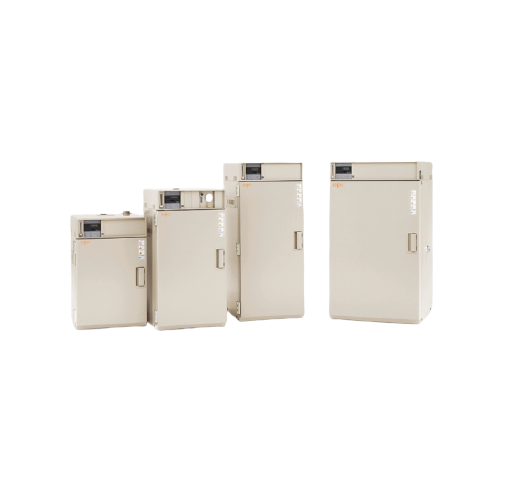

ESPEC PV−232 Temperature Chamber (20~200℃, 432L)

System: Forced hot-air circulation / ventilation system

Performance:

Temperature range: Ambient temp. ＋20℃ to ＋200℃

Temperature heat-up time: Ambient temp. to ＋200℃ within 40 min.

Inside dimensions W×H×Dmm (in): 600×1200×600 (23.6×47.2×23.6)

Outside dimensions W×H×Dmm (in): 770×1800×925 (30.3×70.9×36.4)

Capacity (L): 432

Weight (kg): 210

Allowable ambient conditions: Temperature: 0 to ＋40℃; Humidity: to 75％rh

Utility requirements:

Power supply: 200 / 220 AC 3φ 50/60Hz

Max. power consumption (kVA): 5.8

INCLUDED ACCESSORIES:

● Shelf (stainless steel wire): 2 (stainless steel plate for type 332)

● Shelf bracket (stainless steel): 2 sets (4)

● Cartridge fuse: 2

● User's manual: 1 set

Datasheet
