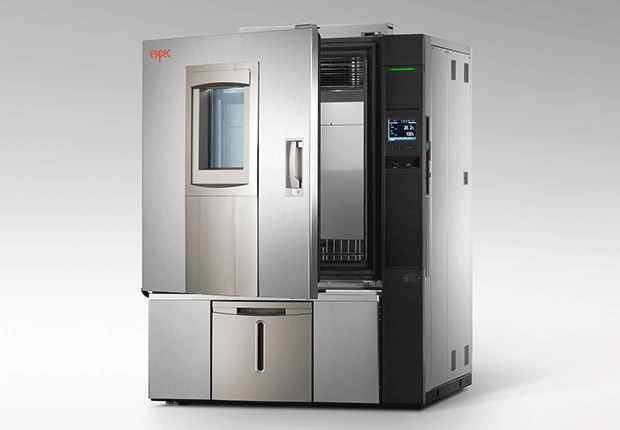

ESPEC PL-2J Low Temperature & Humidity Chamber (225L; -40~100°C; 20~98％RH)

System: Balanced Temperature and Humidity Control system (BTHC system)

Temp. & humidity range: -40~+100℃/20~98％RH

Temp.& humidity fluctuation: ±0.3°C/ ±2.5%rh

Temperature rate of change:

- Heat up rate: 3.0°C/min.

- Pull down rate: 2.0°C/min

Allowable heat load: 1400 W

Air circulator: Cross flow fan

Capacity: 225 L

Inside dimensions (W x H x D mm): 500 x 750 x 600

Outside dimensions (W x H x D mm): 910 x 1590 x 1073

Weight: 340 kg

Datasheet
