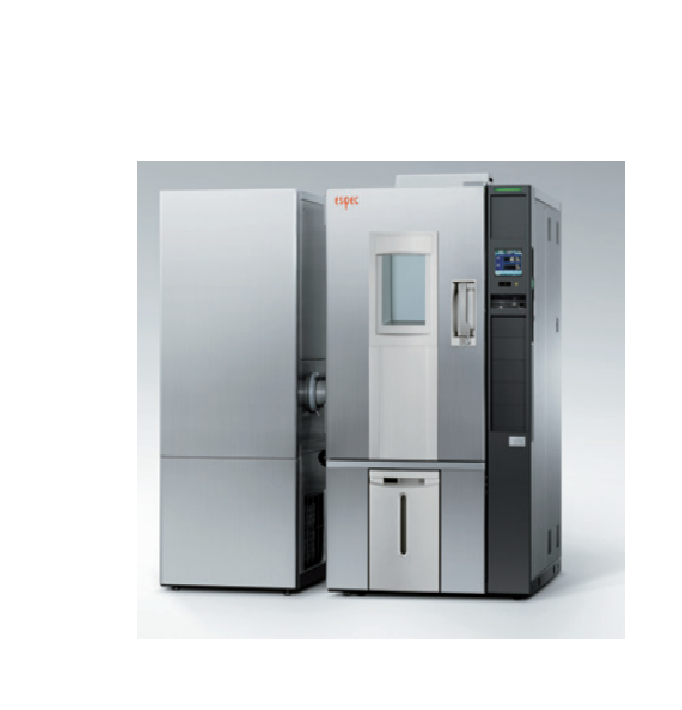

ESPEC PDR-3J Low Temperature & Humidity Chamber (408L; -20~100°C; 5~98％RH)

System: Balanced Temperature and Humidity Control system (BTHC system)

Temp. & humidity range: -20~+100℃/5~98％RH

Temp.& humidity fluctuation: ±0.3°C/ ±2.5%rh

Temperature rate of change:

- Heat up rate: 3.0°C/min.

- Pull down rate: 2.0°C/min

Allowable heat load: 1100 W

Air circulator: Sirocco fan

System: Mechanical type single-stage compression cooling

Refrigerant: R404A

Capacity: 408 L

Inside dimensions (W x H x D mm): 600 x 850 x 800

Outside dimensions (W x H x D mm): 1885 x 1690 (1820) x 1273

Weight: 680kg
