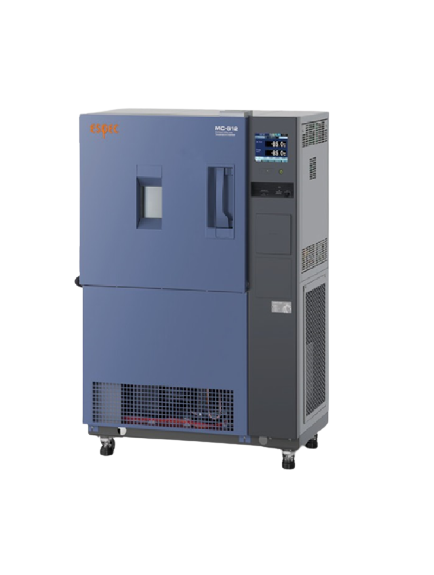

ESPEC MC-812R Low Temperature Chamber (–85~180°C, 64L, BTC)

System: Balanced Temperature Control system (BTC system)

Performance:

Temp. range: –85 to +180°C (–121 to +356°F)

Fittings: Viewing window (W107×H120 mm with frost prevention heater), Cable port (ø50 mm×1), Power cable (about 3.0 m), Drain tube (0.5 m), USB memory port, Specimen power supply control terminal, RS-485 interface

Capacity: 64L

Inside dimensions: W400×H400×D400 mm (W15.7×H15.7×D15.7 in.)

Outside dimensions: W900×H1200×D610 mm (W35.4×H47.2×D24.0 in.)

Weight: 165kg

Power supply: 380V AC 3ø 4W 50Hz: 9.2A

Allowable ambient conditions: 0 to +40°C

Included accessories:

• Shelf (stainless): 2

• Shelf brackets (stainless): 2 sets

• Cable port rubber plug (ø50 mm): 1

• Chamber lamp: 1

• Glass tube fuse: 1 (250V AC 3A), 2 (250V AC 5A)

• Thermal fuse: 1

• User’s manual (CD): 1
