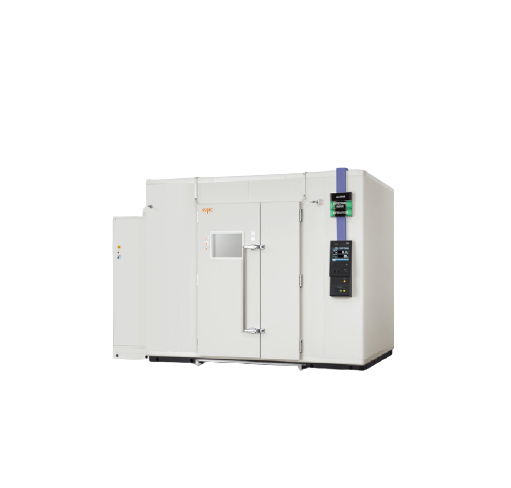

ESPEC EBE Walk-In Type Temperature & Humidity Chamber (–40~+80°C, 10~95%rh, BTHC)

System: Balanced Temperature and Humidity Control system (BTHC system), Vapor pressure divide control system

Performance:

Temp. range: –40 to +80°C (–40 to +176°F)

Humid. range: 10 to 95%rh (at +10 to +80°C)

Main unit

- Exterior material: Color coated sheet metal

- Interior material: 18-8 Cr-Ni stainless steel plate (SUS 304)

- Floor load resistance: Equal load distribution: 6 kPa (600 kgf/m2)

- Door: Single opening door W850xH1800mm

- Insulation: Hard urethane foam

Refrigeration system:

- Single-stage refrigeration system

- Air-cooled condenser or water-cooled condenser

Refrigerant: R404A (R-449A is available on request.)

Fittings: Viewing window (W180 x H289 mm), Cable port (Inside diameter 50 mm), Chamber lamp (LED), Ventilation system

Utility requirements:

Allowable ambient conditions: 5 to +45°C/up to 75% rh

Power supply: AC 220V AC 3ø 50/60Hz

AC 380V AC 3ø 50/60Hz
