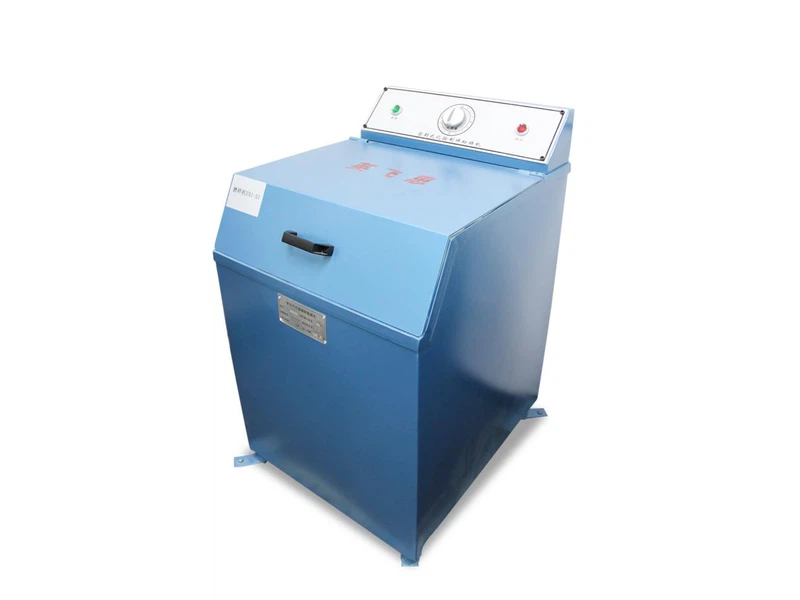

ESi ESI-D2 Sample Prepare Equipment of Grinding Mill

Number of bowls: 2

Machine weight: S1-130 kg, D2-140kg, T3-150kg, F4-220kg

Supporting power: 1.5KW 910 rpm

Filling particle size: <13 mm

Loading weight: 100×2 grams

Processing time: 1 to 3 minutes

Discharging particle size: 120~200 mesh

Sample loss rate: no more than 1%

Time control range: 0~6 minutes

Material bowl material: high manganese steel (standard), tungsten carbide, chromium steel, stainless steel (optional)

Overall dimensions: 560×540×800mm (length×width×height)

Motor power: 1.5 kilowatts, power supply: three-phase 380V

Scope of application

This product features an attractive appearance, compact size, user - friendly operation, and requires no installation. With low noise levels of less than 60 decibels, it can function in any location. It is suitable for crushing and processing metal or non - metal materials by production and research units in fields such as geology, mining, metallurgy, coal, building materials, magnetic materials, light industry, chemical industry, and electric power. It serves as an ideal device for preparing chemical test samples and producing powders.
