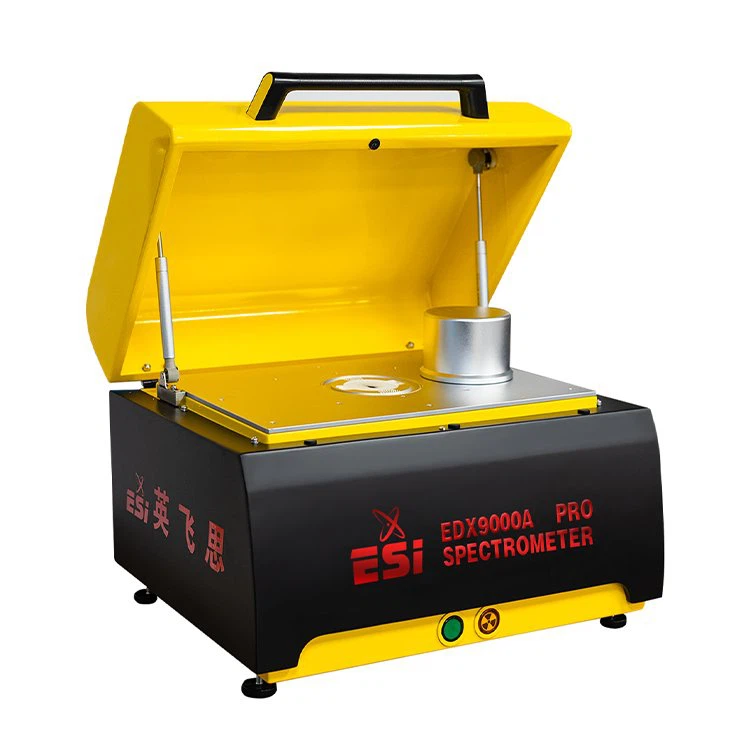

ESi EDX9000A PRO Energy Dispersive X-ray Fluorescence Spectrometer (1ppm - 99.99%)

Size of Spectrometer: 560mm*380mm*410mm

Size of sample chamber：460mm*310mm*95mm

Size of Vacuum sample chamber：Φ150mm×75mm

Weight: 45Kg

Element Range：Na11-U92

Analysis content range：1ppm - 99.99%

Detector：AmpTek high resolution FAST SDD

DPP Analyzer: 4096 Channel DPP analyzer

Excitation Source：High performance US made X-ray tube

HV unit：0-50 kV adjustable

Power supply：220ACV 50/60HZ

Environment：-10 °C to 35 °C

Standard Accessories

>Standard

Au- Calibration standard

Ring holder

Sample cup

USB cable

Power supply cable

Test Mylar

Calibration report

Warranty card

>Optional

Power stabilizer

Precious Metal standard samples

Applications:

Metal processing: the production of brass products and alloy research and development, control the proportion and content of elements. Spectrometers ensure quality and aid research and development.

Mechanical engineering: In the manufacture of mechanical parts, the quality of brass is checked. Perform equipment maintenance, component change analysis, problem diagnosis.

Automotive industry: Used for quality inspection of brass parts such as engine and brake system.

Jewelry and decor: Detecting brass in jewelry and decorative items to ensure quality and authenticity.
