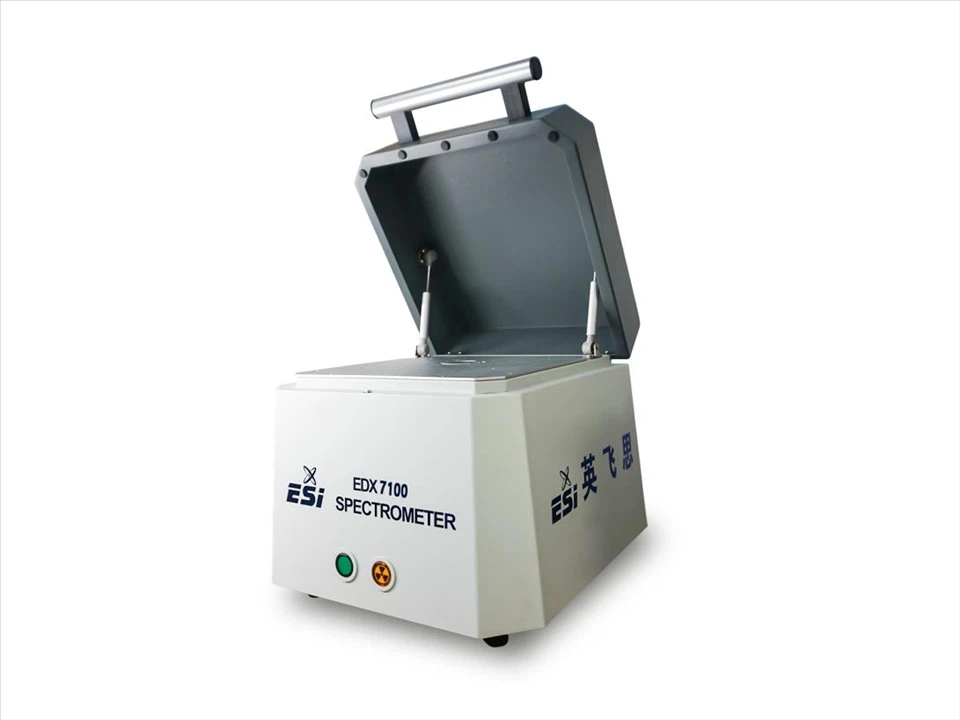

ESi EDX7100 RoHS1.0 Spectrometer

Size: 435mm*470mm*410mm

Weight: 30Kg

Element analysis range：S16-U92

Analyzable content range：1ppm- 99.99%

Detector：AmpTek High-resolution electro-cooling

Si-pin Detector

Multi-channel analyzer: 4096 DPP analyzer

X-ray tube：50W high power tube

High-voltage generator: Maximum output voltage of 50kV, with built-in voltage overload protection

Voltage：220ACV 50/60HZ

Ambient temperature：-10°C - 35°C

Features

1,One-click automatic testing for simpler and more convenient operation, allowing even non-technical personnel to get started quickly.

2,Equipped with the latest Si-pin detector from American AmpTek, featuring electro-cooling technology, which offers small size, accurate data analysis, and low maintenance costs.

3,Adopts self-developed detector signal enhancement processing system to improve signal-to-noise ratio, achieving a laboratory-level minimum detection limit of 1ppm.

4,Multiple anti-radiation leakage designs, with radiation protection level being the highest among similar products.

5,Unique movement temperature control technology ensures safe and reliable operation of the X-ray source, reducing operating costs.

6,Optimized detection for elements such as Cl and Cr, significantly improving the testing sensitivity and stability for low-content Cl and Cr, providing more accurate detection methods for users' halogen-free analysis.

7,Expandable for coating thickness measurement and metal alloy composition analysis. The PC reporting software of EDX7100 can generate reports immediately and allows customizing report formats, including analysis results, sample information, spectral data, and sample images. Traceable documents make EDX7100 an ideal tool for RoHS compliance testing.
