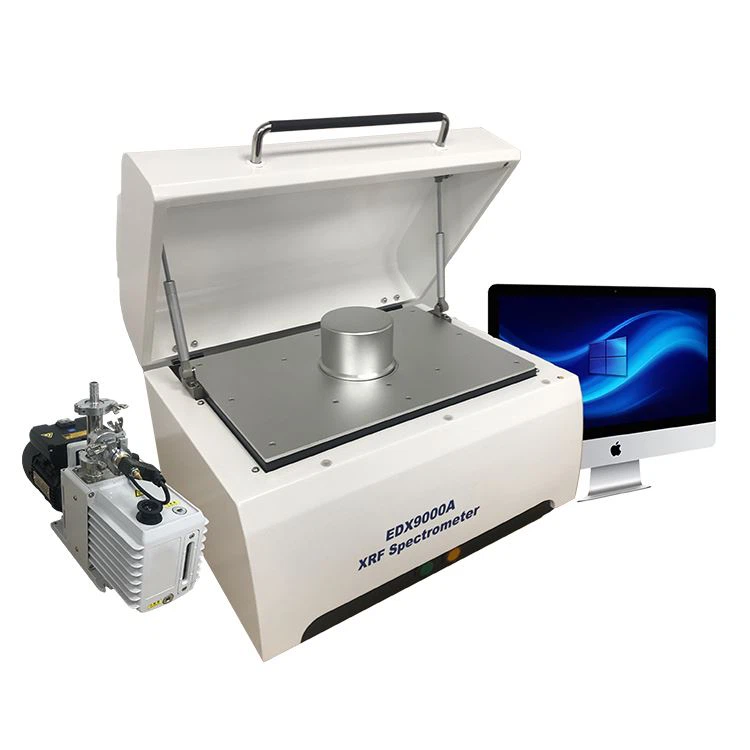

Size of Spectrometer: 560mm*380mm*410mm
Size of sample chamber：460mm*310mm*95mm
Size of Vacuum sample chamber：Φ150mm×75mm
Weight: 45Kg
Element Range：Na11-U92
Analysis content range：1ppm- 99.99%
Detector：AmpTek high resolution SDD
DPP Analyzer: 4096 Channel DPP analyzer
Excitation Source：50W X-ray tube
HV unit：0-50kV
Power supply：220ACV 50/60HZ
Environment：-10 °C - 35 °C
Accessory
>Standard
Ag- Calibration standard
Vacuum pump
Sample cup
USB cable
Power supply cable
Test Mylar
Calibration report
Warranty card
>Optional
Power stabilizer
Alloy standard samples
Typical Applications:
- Minerals and Mining Analysis; instant, on-site ore exploration, mine mapping, excavation, and grade control
- Toxic Soil Screening; environmental soil testing, determination of toxic elements and pollutants
- RoHS Compliance Analysis; determine Cr, Pb, Hg, Br, and Cd
- Home Inspection; lead in paint analysis
- Consumer Goods Analysis; non-destructive screening for Lead (Pb) and other restricted elements
- Treated Wood Screening; identify wood treated with hazardous substances such as CCA in seconds
Features:
- High Speed Analysis (High Sensitivity)
Measurement times can be greatly shortened, typically to one tenth the time of conventional methods, by combining the high count rate detector and precision control software.
- High Count Rate Detector—No LN2 Needed
- Wide Range of Application
Measurement of Na to U element is possible by performing measurements in a vacuum condition . This feature also supports highly sensitive analysis of Cl.
