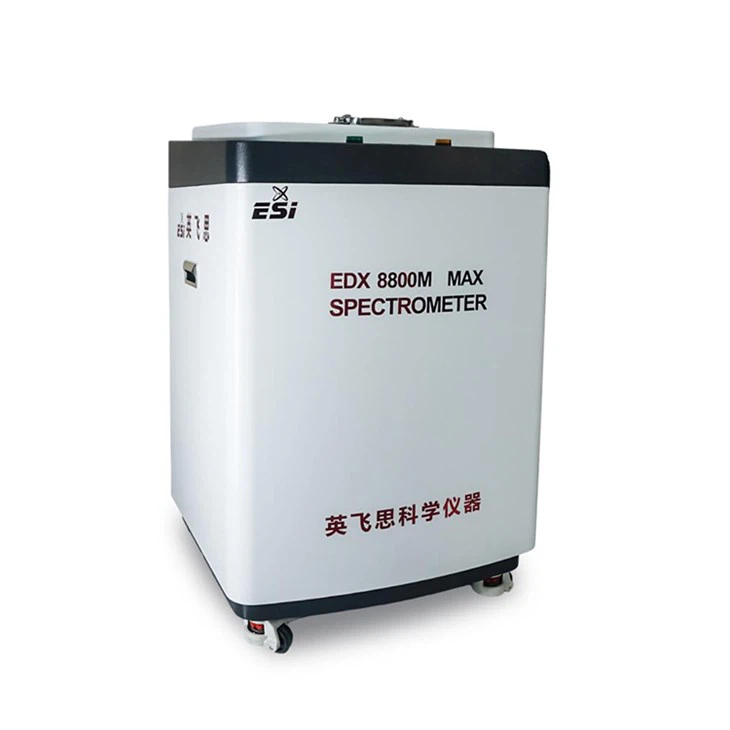

ESi EDX 8800M High-end EDXRF Spectrometer For Element Analysis

Dimension: 650mm*610mm*1040mm

Weight: 165Kg

Detector：Next Generation Peltier cooled FSDD Analyzing from Sodium to Uranium(Optional Upgrade to Super FSDD to extend range from Fluorine to Americium )

High-throughput count rate wide linear dynamic range: 1000-1000000cps, including signal enhancement processing module SNE

Digital Pulse Analyzer: 4096 channels,Peak drift is less than 0.5 channel (24 hours)

X-ray tube: High-power long-life-time X-ray tube beryllium window

High-voltage Unit: High precision HV unit with its own voltage overload protection

Sample observation : High-resolution CCD camera

Collimator: Automatic 8-sizes changer

Filter:10-position automatic filter changer

Concentration range: 0.2ppm to 99.99%

Sample chamber: air, vacuum, helium (optional). Built-in high-power vacuum pump

Power requirements：220ACV 50/60HZ

Fully radiation-protected system; radiation <1 μSv/h

Accessory

>Standard Configurations

Silver Calibration standard

XRF Sample cup(Type 1, Type2, Type 3 and Type 4)

USB cable

Power supply cable

Test Mylar(2㎛, 4㎛,6㎛)

Factory Calibration report

Warranty card

CE/ISO/Radiation Certificates

>Optional

Mill machine (S1 single pot, D2 double pot, T3 three pot)

Sample press pellet machine(30ton, 40ton, 60ton)-

Manual-ESI-30T, ESI-40T, ESI-60T,

Automatic: ESI-30S, ESI-40S, ESI-60S,

Drying oven

Fusing bead machine- ESI900(6 molding cups simultaneously)

Electronic scale- 0.0001g precision

Calibration Standard samples

Power stabilizer- 3000 Watts

Key Features

•Analyze everything fast, The direct-excitation beam path makes full use of the X-ray tube

•100 Watts high voltage unit for wide elemental coverage

•Multiple automated tube filters for enhanced sensitivity

•Multi-instrument hardware protection system, and real-time monitoring of the whole process through software, making the instrument work more stable and safer

•Dedicated light element configuration for best analytical performance of elements such as Fluorine, Sodium ,Magnesium, Aluminum and Silicon

•Measure material homogeneity and/or coating thickness

•Auto controlled collimator masks allow analysis of smallest particles within large samples

•HD camera for sample verification

•Core options：

Auto sampler with spinner: 10/12/14 sample cups available with spinner (10 cups)-

The sample spinner is rotated within the chamber during testing, ensuring an overall accurate reading that best characterizes the entire sample.
