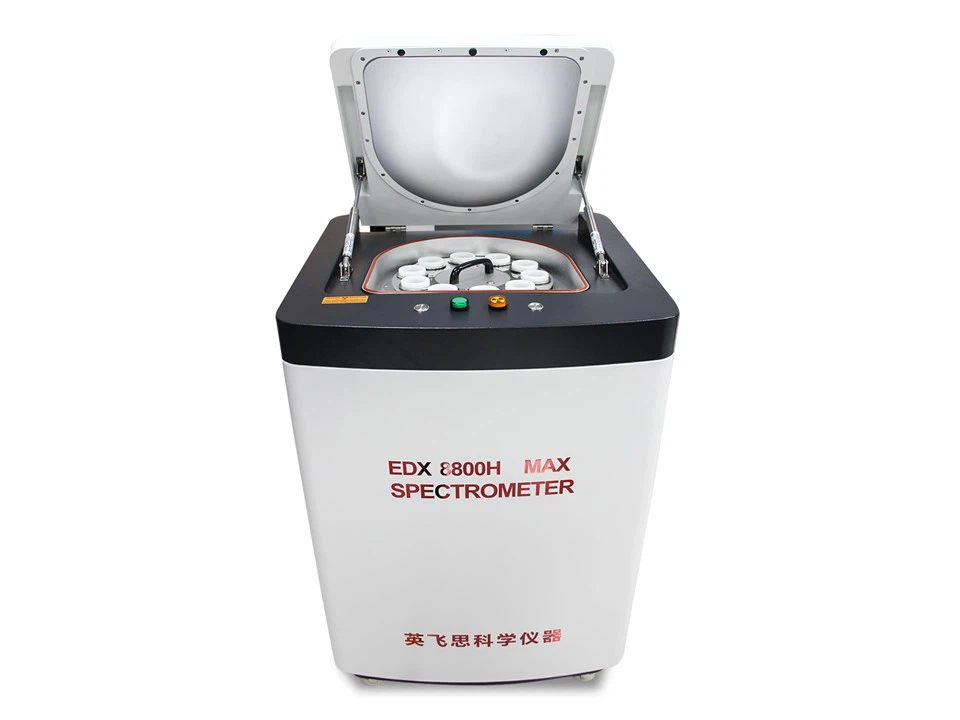

ESi EDX-8800H MAX Hign-End X-ray Fluorescence Spectrometer

Size: 650mm*600mm*900mm

Weight: 105Kg

Element Range：Na11-U92

Detection Limit：1ppm- 99.99%

Detector：AmpTek High-resolution FSDD

Multi-channel analyzer : 4096 Channel DPP analyzer

X-ray tube：Original imported high power beryllium window light tube

High voltage generator：Maximum voltage output of 100kV, with a voltage overload protection

Power Supply：220ACV 50/60HZ

Temperature：-10 °C to 35 °C

Standard Accessories

> Standard

Ag- Calibration standard

Vacuum pump

Sample cup

USB cable

Power supply cable

Test Mylar

Calibration report

Warranty card

>Optional

Mill machine

Sample pressing machine

Drying oven

Drying oven

Balance

Mineral Standard samples

Power stabilizer

150 - mesh sieve

Applications

ESI EDX8800H MAX spectrometer is mainly used for material element composition analysis at all stages of the mining process. From exploration samples to mineral concentrates, from beneficiation to tailings, the EDX8800H MAX offers excellent flexibility, analytical performance and stability in demanding mining environments.

EDX8800H MAX focuses on qualitative and quantitative analysis of major, trace and trace elements of geological materials, including:

• Iron ore • Copper • Bauxite • Precious metals • rare earth minerals • Raw materials • Phosphate • Coal • Lead zinc • Manganese • Nickel • Limestone • Clay • Gypsum • Glass • Soil • cement • Refractory materials and others

The EDX8800H MAX is easy to operate and has excellent analytical performance, while also extending to the following applications

Plastic and organic matter: plastic materials PE, PVC, additives and other elements analysis

Petrochemical: Analysis of sulfur in fuels, lubricating oil monitoring, additives, wear metals, etc

Environment: wastewater, air pollution, soil and ground, discharge control, etc

Coating thickness and film: Analysis of multilayer coatings, steel coatings, impurities, etc

Criminal Investigation and Public Security: evidence analysis, material matching, explosives, etc

Food, cosmetics and pharmaceuticals: additive control, raw materials, harmful metals, packaging materials, etc
