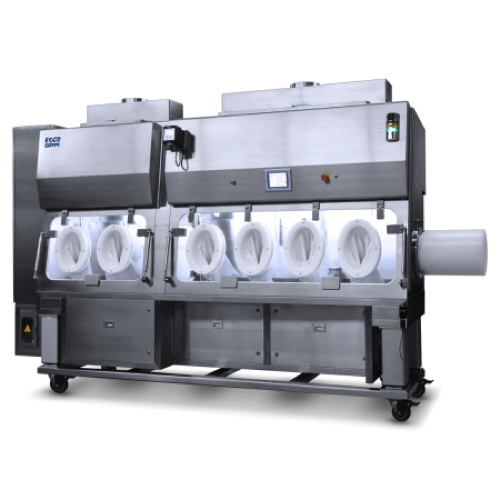

ESCO GPPI-4G General Processing Platform Isolator (2000 x 540 x 700 mm)

Nominal Size Main Chamber (Width): 2000 mm

External Dimensions (W x D x H):

Process Chamber: 2304 x 881 x 2430 mm

Pass Chamber: 710 x 772 x 2430 mm

Internal Dimensions (W x D x H):

Process Chamber: 2000 x 540 x 700 mm

Pass Chamber: 606 x 458 x 790 mm (23.86" x 18.03" x 31.10")

Glove Port Height: 1150 mm (45.3")

Chamber Environment: ISO Class 5 (Grade A)

Filtration:

Prefilter: M6 pre filter with ≥ 60% as per EN 779:2012

Chamber Supply:

Filter Type: ULPA (U15) with Knife Edge Gel Seal

Filter Efficiency: 99.9995% at Most Penetrating Particle Size (MPPS) as per EN1822:2009

Chamber Exhaust:

Filter Type: HEPA (H14) with Gasket Seal and Integral Mesh Guard

Filter Efficiency: 99.995% at Most Penetrating Particle Size (MPPS) as per EN1822:2009

Lighting Level: ≥ 600 Lux

Sound Level: ≤75 dBA

Isolator Finish:

Internal Chamber: ≤ 0.4 Ra

External Chamber: ≤ 0.6 Ra

ExternalService Housing: ≤ 0.6 Ra

Electrical Requirements:

220-240V, AC, 50Hz, 1Ø ✓

220-240V, AC, 60Hz, 1Ø ✓

Compressed Air Requirement (By Client) (If no mobile compressor): Min 6 Bar - Max 12 Bar, ≥ 200L/min ✓

Exhaust Duct Requirements (By Client) (Unless Integral Catalytic Converter is Included): 10” Duct from Isolator to outside
