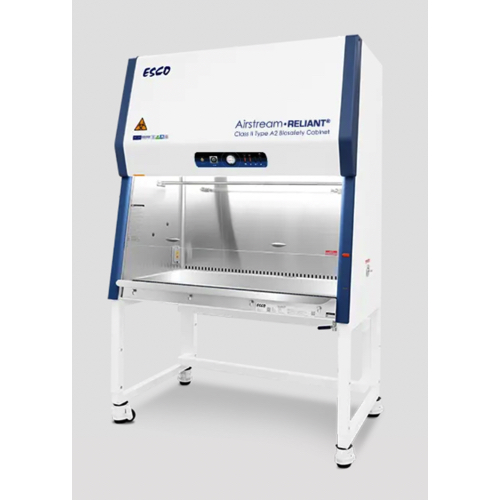

ESCO AR2-6S9 G4 Biological Safety Cabinet (Class II, 0.9 m2)

110-130 VAC, 50/60 Hz

External Dimensions (W x D x H): 1950 x 850 x 1400 mm

Gross Internal Dimensions (W x D x H): 1830 x 610 x 660 mm

Usable Work Area: 0.9 m2

Tested Opening: 203 mm (8”) or 254 mm (10”)

Working Opening: 218 mm (8.6”) or 268 mm (10.6”)

Average Inflow Velocity: 0.53 m/s (105 fpm)

Average Downflow Velocity: 0.30 m/s (60 fpm)

Airflow Volume:

Inflow / Exhaust Without Ducting: 709 cmh

Downflow: 1107 cmh

Required Exhaust with Optional Thimble Exhaust Collar: 1064 cmh

Static Pressure For Optional Thimble Exhaust Collar: 68 Pa / 0.27 in H2O

ULPA Filter Typical Efficiency: >99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA, >99.999% at MPPS, H14 as per EN 1822 EU

Sound Emission per NSF / ANSI 49*: 60.5 dBA

Fluorescent Lamp Intensity: 1035 lux

Cabinet Construction:

Main Body: 1.2 mm (0.05") / 18 gauge EG Steel with IsocideTM Oven-Baked Epoxy-Polyester Anti-microbial Powder Coating

Work Zone: 1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish

Side Walls: 1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish

Electrical:

Voltage: 110-130 VAC, 50/60 Hz

Cabinet Full Load Amps (FLA): 15

Heat Load (BTU / Hr): 999

Nominal Power Consumption (W): 318

Net Weight: 361 Kg
