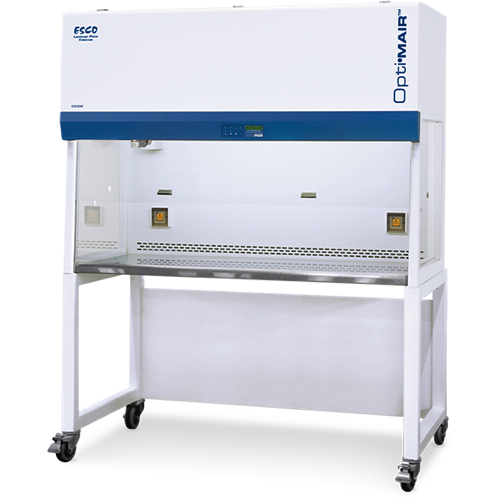

ESCO ACB-4E1 OptiMair™ Vertical Laminar Flow Cabinet (1270 x 524 x 570 mm, 230 VAC, 50 Hz)

Nominal Size: 1.2 meter

External Dimensions (W x D x H):

Without Base Stand: 1340 x 620 x 983 mm

With Optional Base Stand, 711 mm (28”) type: 1340 x 620 x 1694 mm

Internal Work Area Dimensions (W x D x H): 1270 x 524 x 570 mm

Usable Work Zone: 0.67 m²

Initial Airflow Velocity: 0.3 m/s (60 fpm)

Air Volume: 566 m³/h

Sound Emission per IEST-RP-CC002.2*: <61 dBA

Electrical: Power Rating 1; 220-240 VAC, 50Hz, 1Ø

Net Weight**: 140 kg

*Noise reading in open field condition/ anechoic chamber.

**Cabinet only; excludes optional stand.
