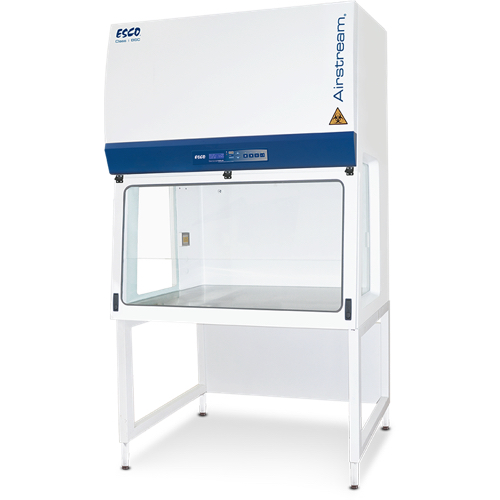

ESCO AC1-4E8 Biological Safety Cabinet (Class I, 0.76 m2)

External Dimensions (W x D x H): 1340 mm x 731 mm x 1395 mm

Gross Internal Dimensions (W x D x H): 1220 x 660 x 670 mm

Usable Work Area: 0.76 m^2

Maximum Window Opening (at 90° opening): 565 mm

Working Opening: 203 mm

Average Inflow Velocity: 0.85 m/s

Airflow Volume:

Inflow: 758 m^3/h

Exhaust: 758 m^3/h

Required Exhaust with Optional Thimble Exhaust Collar: 1219 m3 /h (717 cfm)

Static Pressure for Optional Thimble Exhaust Collar: 85 Pa (0.34 in H2O)

HEPA Filter Typical Efficiency:

>99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

>99.999% at MPPS, H14 as per EN 1822 EU

Sound Emission in Typical Lab Room per EN 12469: 48.4 dBA

Fluorescent Lamp Intensity (lux): >1200 lux (>111 foot candles)

Cabinet Construction:

Main body: 1.2 mm (0.08") /18 gauge EG Steel with IsocideTM Oven-Baked Epoxy-Polyester Powder Coating

Work Zone Tray: 1.2 mm (0.08")/18 gauge, SS 304, 4B Finish

Side Walls: 5 mm (0.2") UV Absorbing Tempered Glass

Electrical:

FLA (Full Load Amps): 8.1

Heat Load (BTU / Hr): 628

Nominal Power Consumption: 184 W

Net Weight: 230 kg
